Ground Views

Fig 1: Identifying Forward Lamp Harness
GM1848578Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J122
2 J120
3 Fuse Block - Underhood X1
4 G102
5 X120
6 G103
7 X151
8 X107 (W49 or WDA)
9 X108 (W49 or WDA)
10 X150
Fig 2: Identifying Engine Compartment Harness (LLT)
GM2125678Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G115
2 G114
3 G110
4 G112
Fig 3: View Of G113
GM1867860Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine
2 Automatic Transmission
3 G113
Fig 4: View Near Brake Booster
GM1863194Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Brake Fluid Level Switch
2 Left Fender
3 G103
4 G101
5 G115
6 G105
7 Electronic Brake Control Module (EBCM)
8 Brake Booster Vacuum Sensor

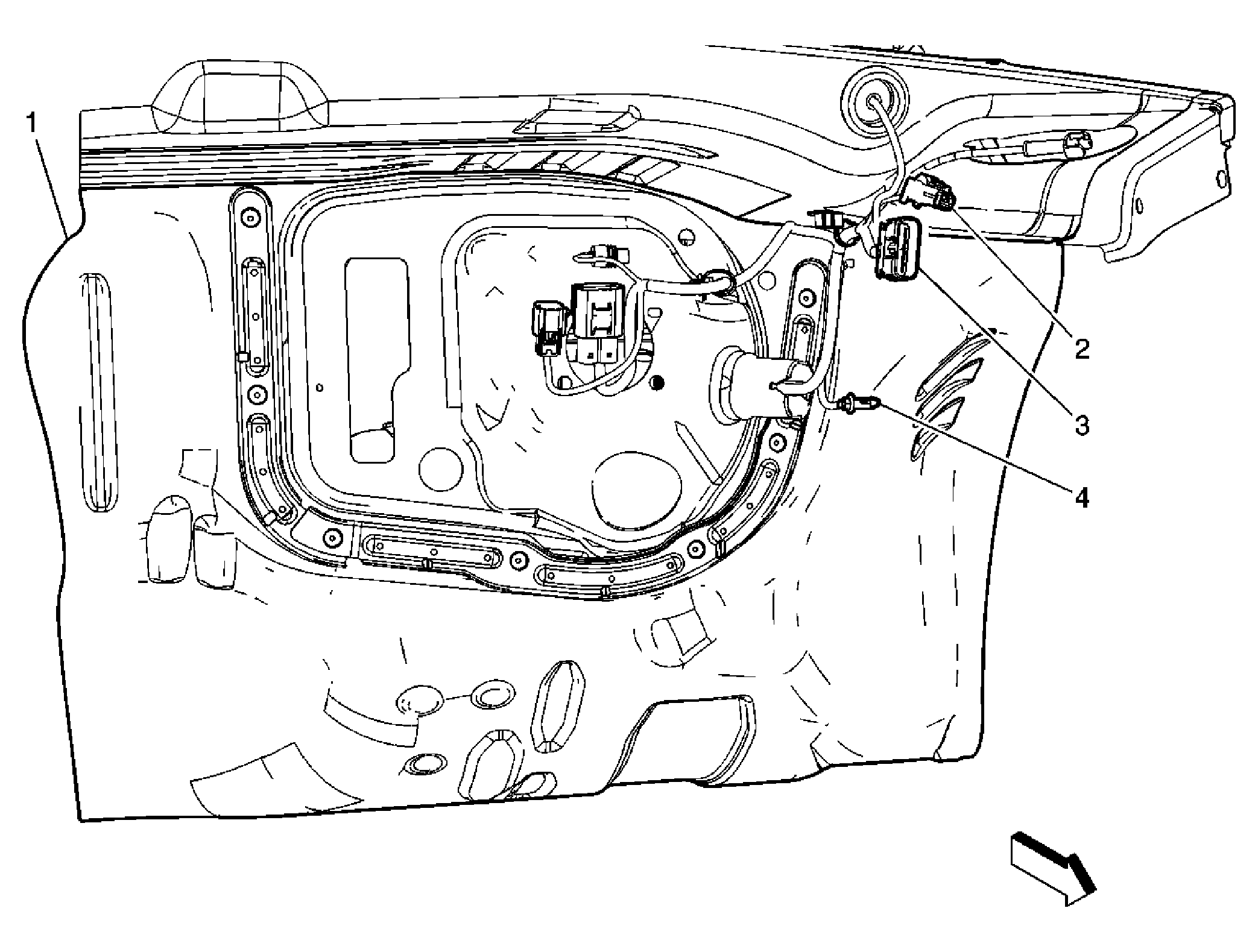

Fig 5: Identifying I/P Harness - Engine compartment
GM1848563Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Dash Panel
2 X109 (XA7)
3 X111
4 G105
Fig 6: View Of Components Located Near Battery
GM1848558Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Floor Panel
2 G305
3 Battery Current Sensor
4 X324
5 Inline Fuse Onstar (UE1)
6 X325 (UE1)
Fig 7: Identifying Body Harness - Left Rear Passenger Compartment
GM1848572Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G401
2 Radio Antenna X1
3 Inflatable Restraint Roof Rail Module - Driver Connector
4 JX405
5 X405
Fig 8: View Of Body Harness - Right Rear Passenger Compartment
GM1848573Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G402
2 X351
3 Inflatable Restraint Roof Rail Module - Passenger Connector
4 Radio Antenna X2
5 Radio Antenna X1
6 X320 (DNP or UD7 or UE1)
7 X322

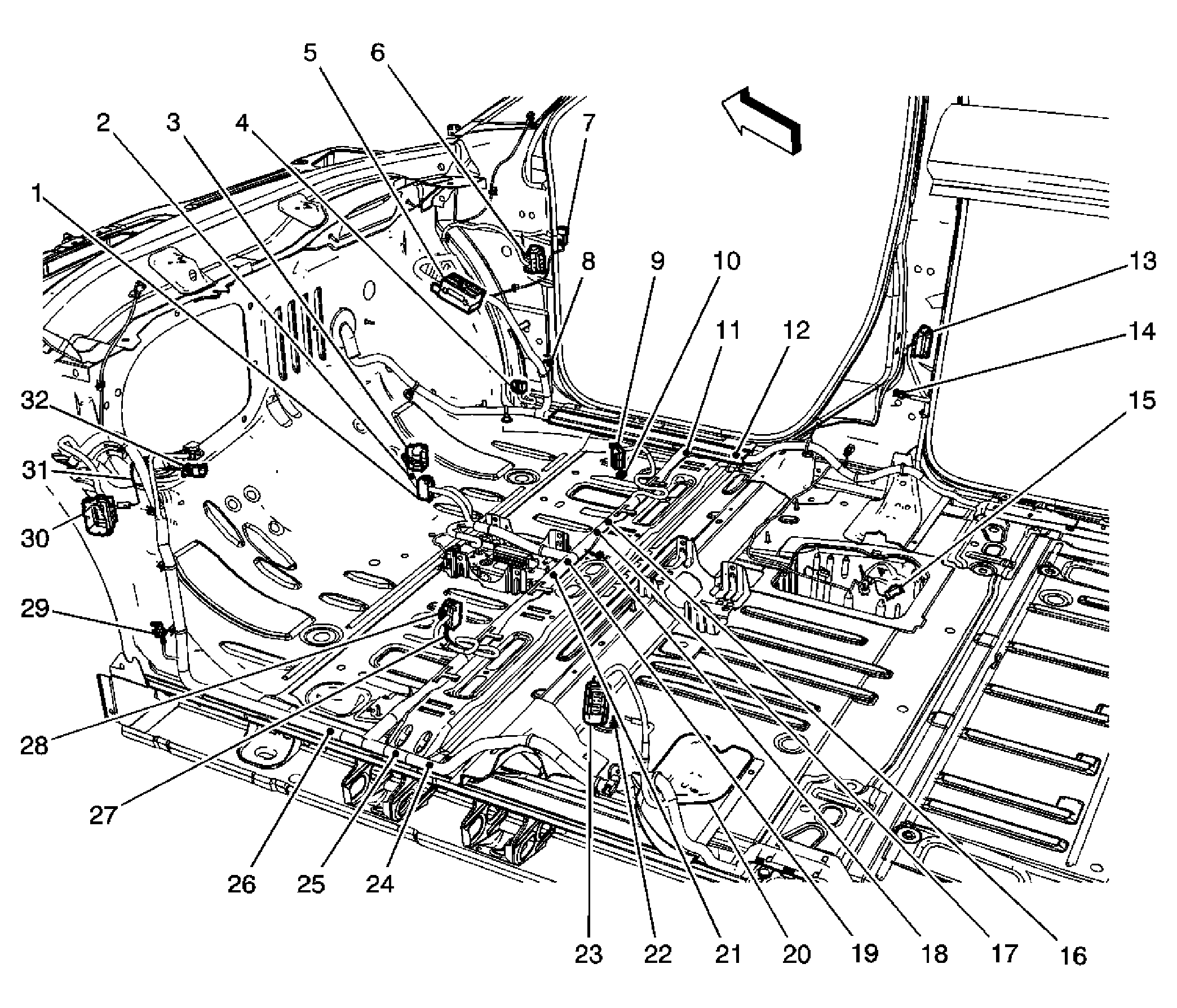

Fig 9: Identifying Body Harness - Front Passenger Compartment
GM1848564Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X202
2 J317
3 X340
4 X200
5 Fuse Block - I/P X1
6 X600
7 Inflatable Restraint I/P Module - Connector
8 G300
9 X314
10 Inflatable Restraint Side Impact Module - Right Connector
11 J308
12 J304
13 X800
14 G302
15 X324
16 J322
17 J302
18 G304
19 J311
20 X305
21 J313
22 G303
23 X700
24 J335
25 J333
26 J319
27 Inflatable Restraint Side Impact Module - Left Connector
28 X315
29 G301
30 X500
31 X209 (V92)
32 JX205
