Ball Check Valve Locations

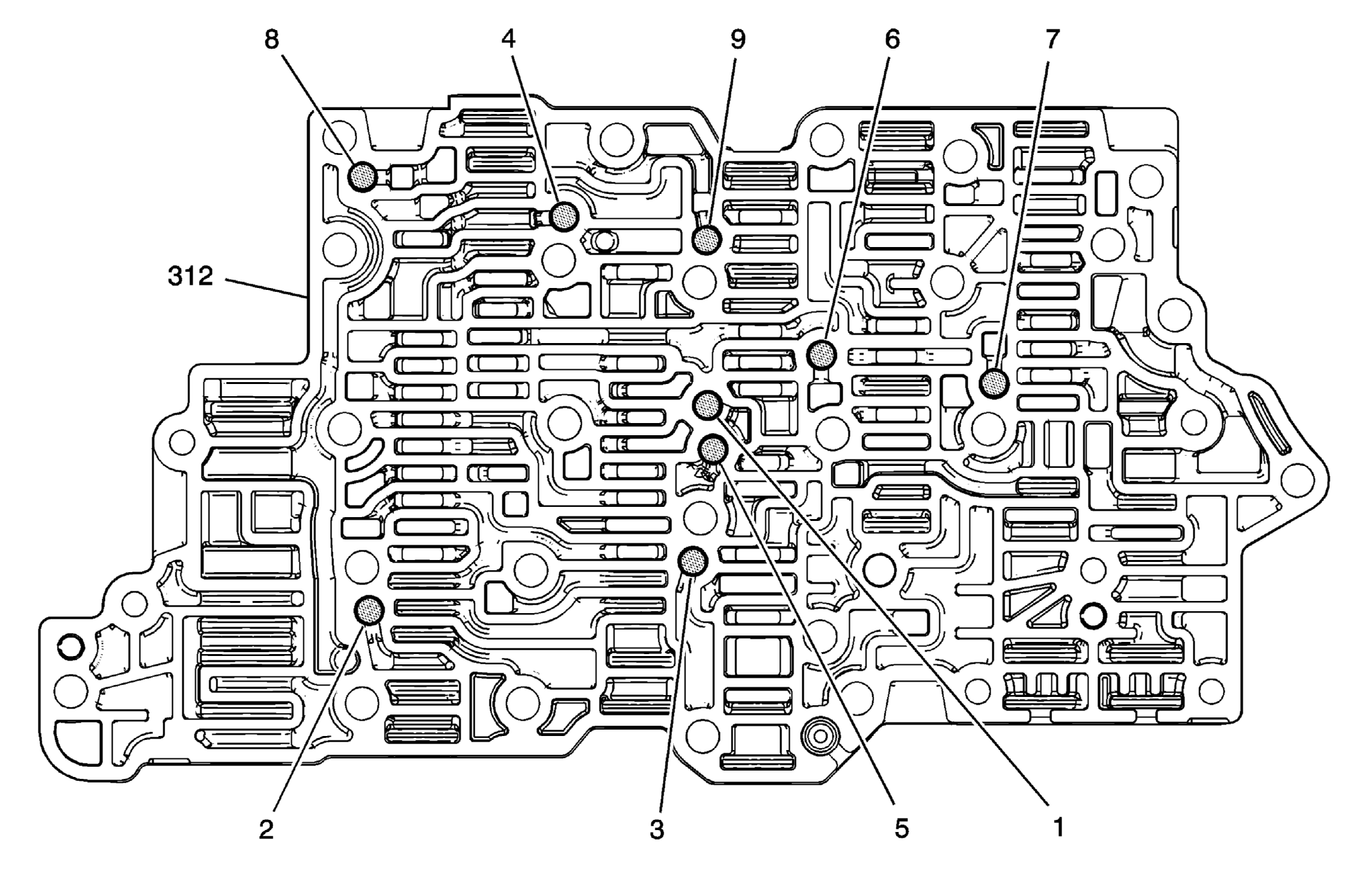

Fig 1: Identifying Ball Check Valve Locations

Courtesy of GENERAL MOTORS CORP.

I.D.	Input Oil	Input Oil	Output Oil
1	Drive 1-6	DRV B	26/1234 CL Feed
2	Solenoid 1	Reverse	CSV2 Enable
3	Solenoid 2	456	CSV3 Enable
4	PS4	456	CSV2 Latch
5	Drive 1-6	35 Rev FD	35 Rev Supply
6	2-6/1234	-	1234 Clutch Feed
7	35R Supply	-	35R Clutch Feed
8	Low/Rev Supply	-	Low/Rev Clutch Feed
9	456 Clutch Supply	-	456 Clutch Feed
