Emergency Contact Button

Harness Routing Views

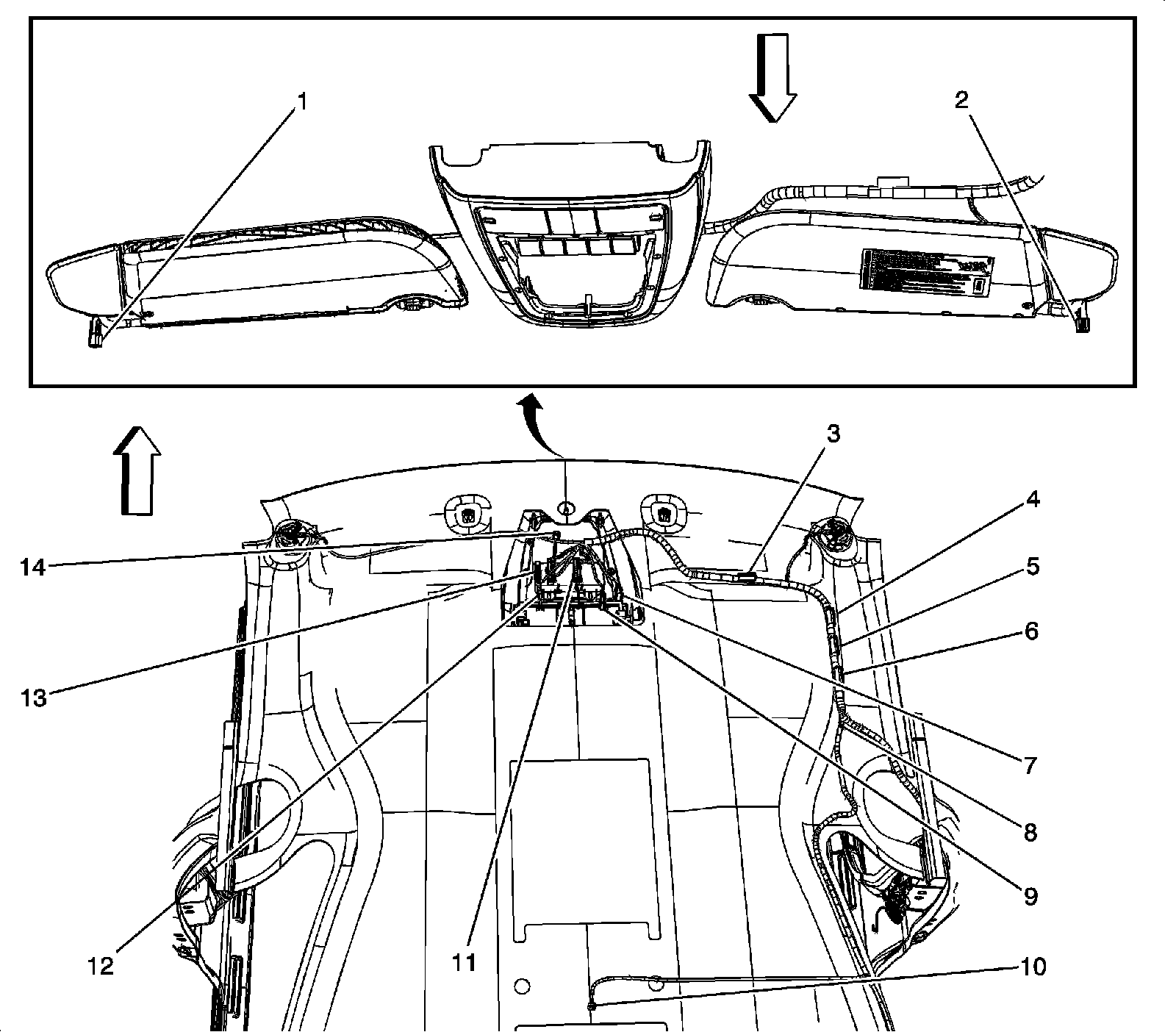

Headliner Harness Components 1 of 2




1 - Vanity Mirror Lamp - Left (DH6) Connector
2 - Vanity Mirror Lamp - Right (DH6) Connector
3 - J388
4 - J386
5 - J384
6 - J382
7 - Onstar Button Assembly (UE1)
8 - J380
9 - Cellular Telephone Microphone (UE1)
10 - Courtesy/Reading Lamp - 2nd Row Connector
11 - Multifunction Switch - Overhead Console X2
12 - Multifunction Switch - Overhead Console X1
13 - Garage Door Opener (UG1)
14 - Overhead Console Courtesy/Reading Lamps Connector
