Right Side of I/P Components

Ground Views

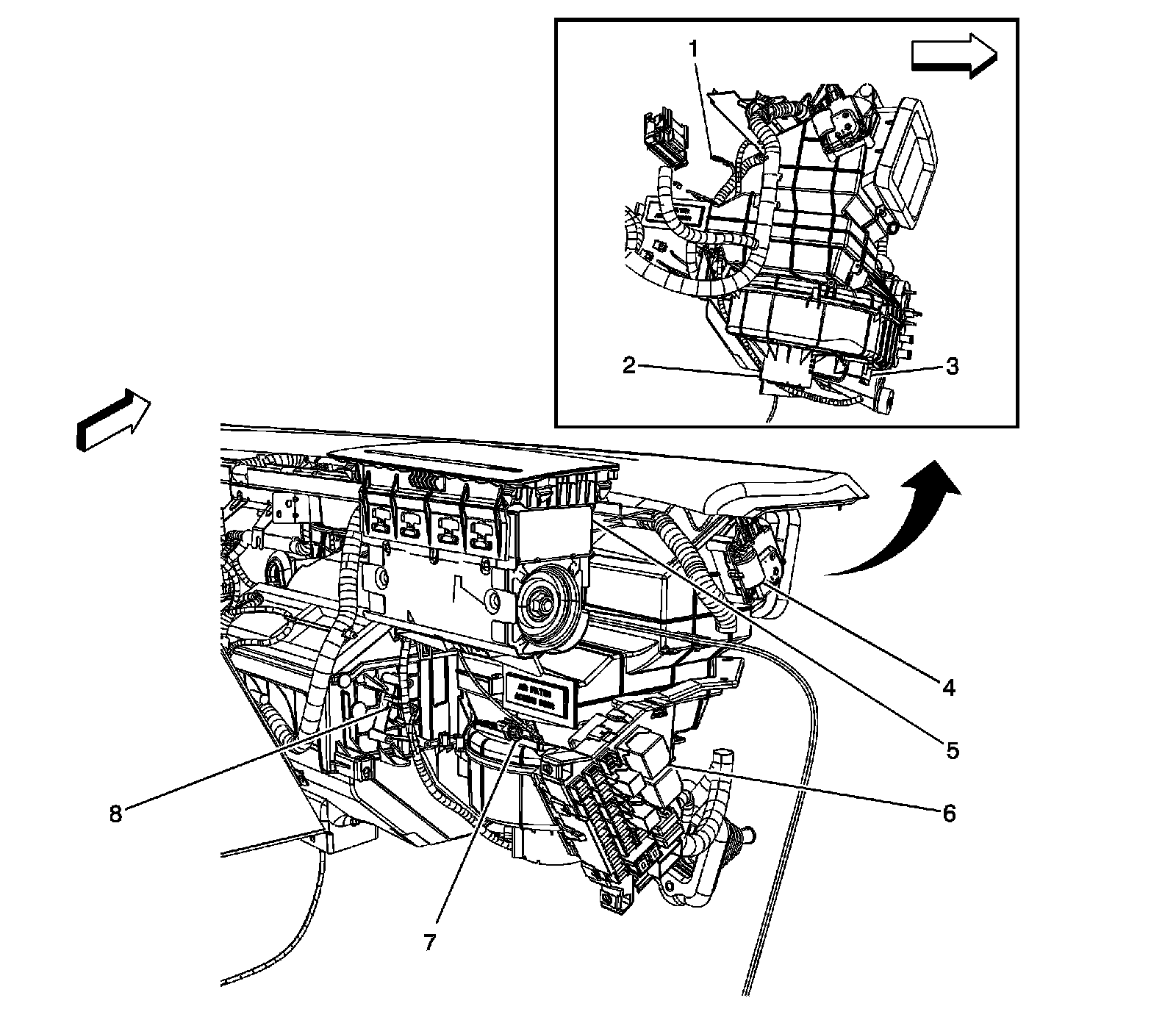

Right Side of I/P Components




1 - G200
2 - Blower Motor
3 - Blower Motor Resistor Assembly
4 - Recirculation Actuator
5 - Inflatable Restraint Instrument Panel Module
6 - Fuse Block - Instrument Panel
7 - Evaporative Temperature Sensor
8 - X205 Instrument Panel Harness to HVAC Jumper Harness (CJ3) (Air Temperature Actuator - Right)
