Window Switch - Driver Connector

Door Component Views

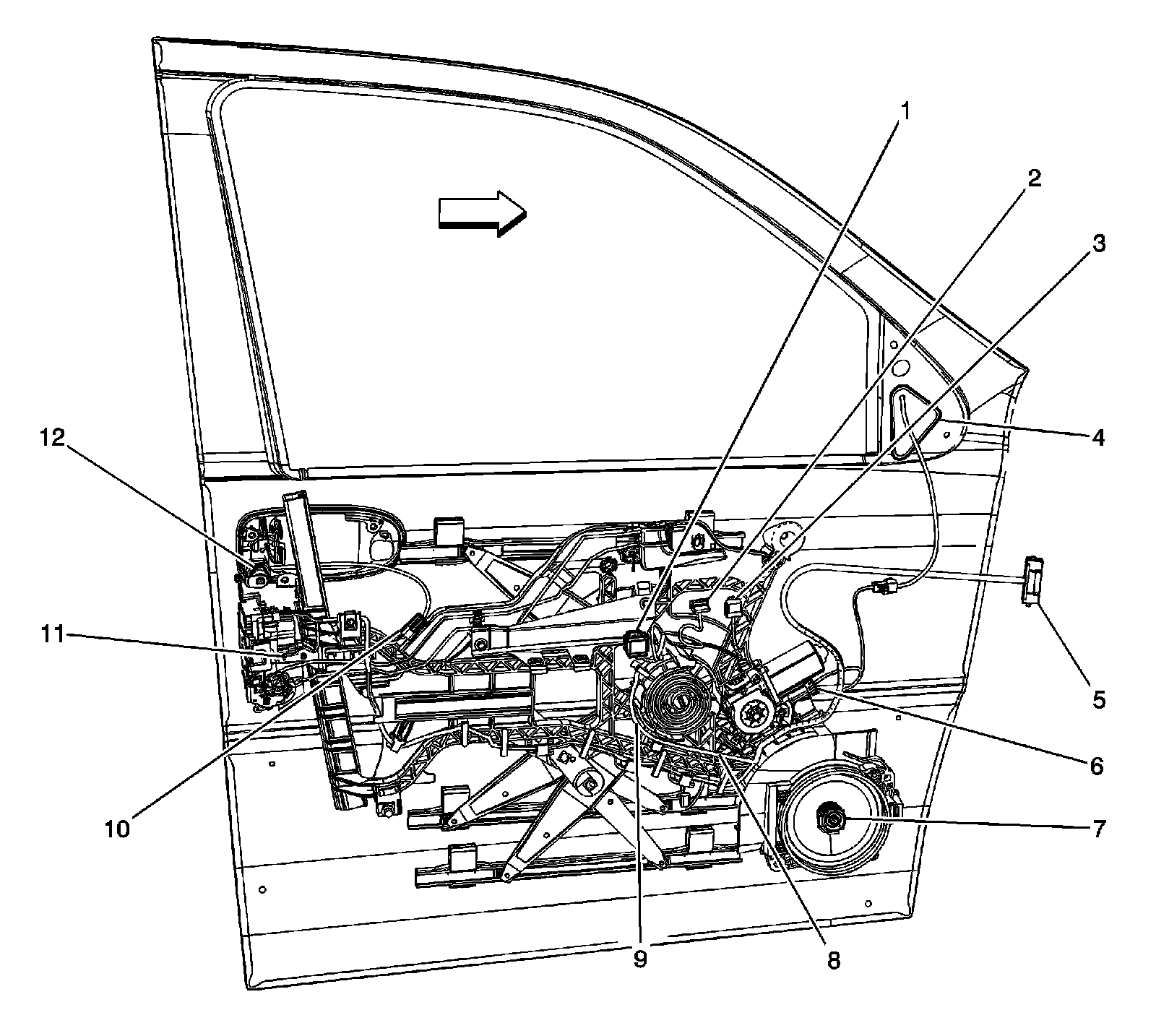

Driver Door Components




1 - Outside Rearview Mirror Switch - Left Connector
2 - Window Switch - Driver Connector
3 - Door Lock Switch - Driver Connector
4 - Outside Rearview Mirror - Driver
5 - X301
6 - Window Motor - Driver
7 - Speaker - Left Front
8 - J555
9 - J551
10 - Door Lock Cylinder Key Switch Connector
11 - Door Latch - Driver
12 - Door Lock Cylinder Key Switch - Driver (AU6)
