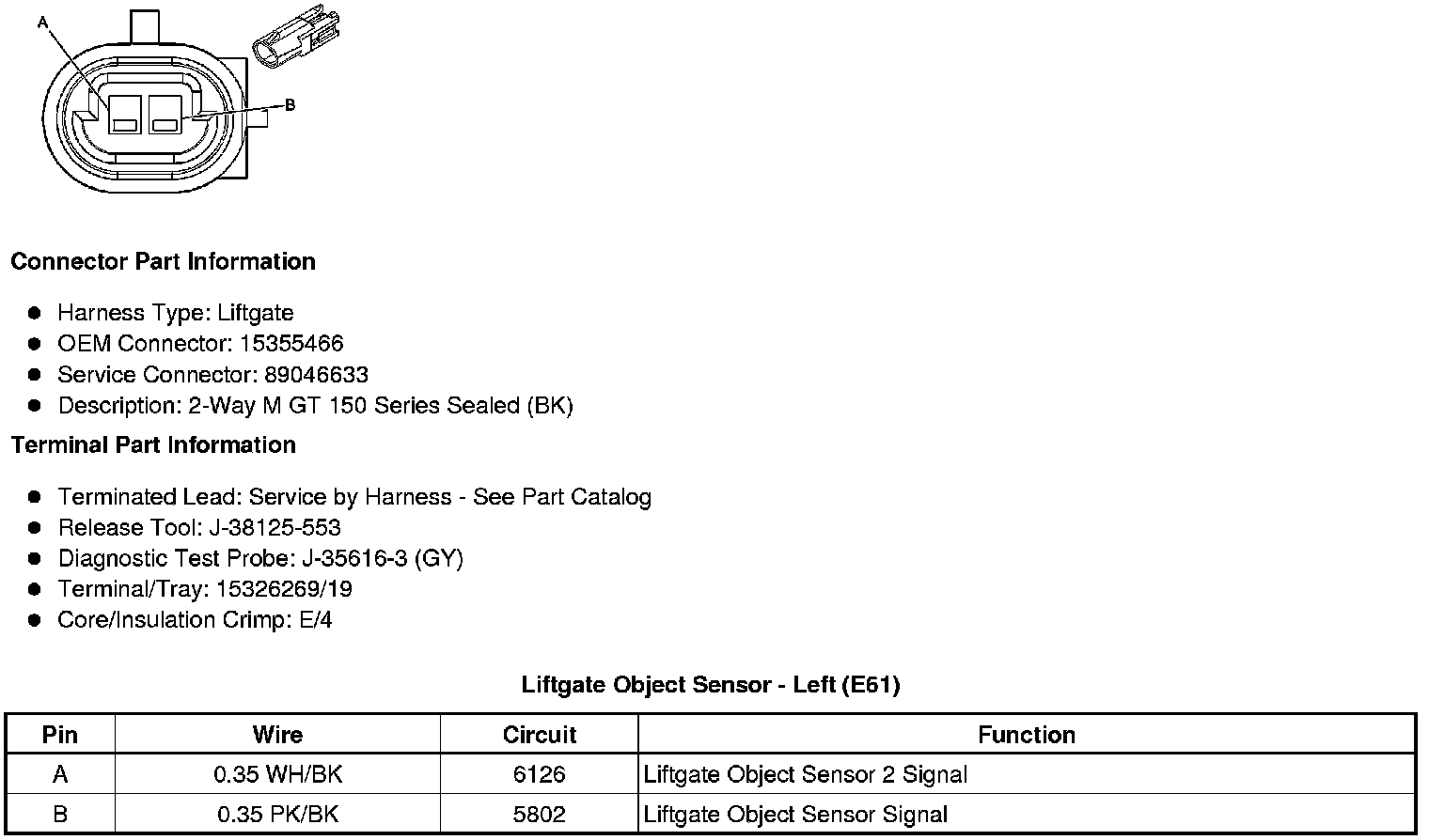

Liftgate Object Sensor - Left (E61)
Component Connector End Views
Liftgate Object Sensor - Left (E61)
