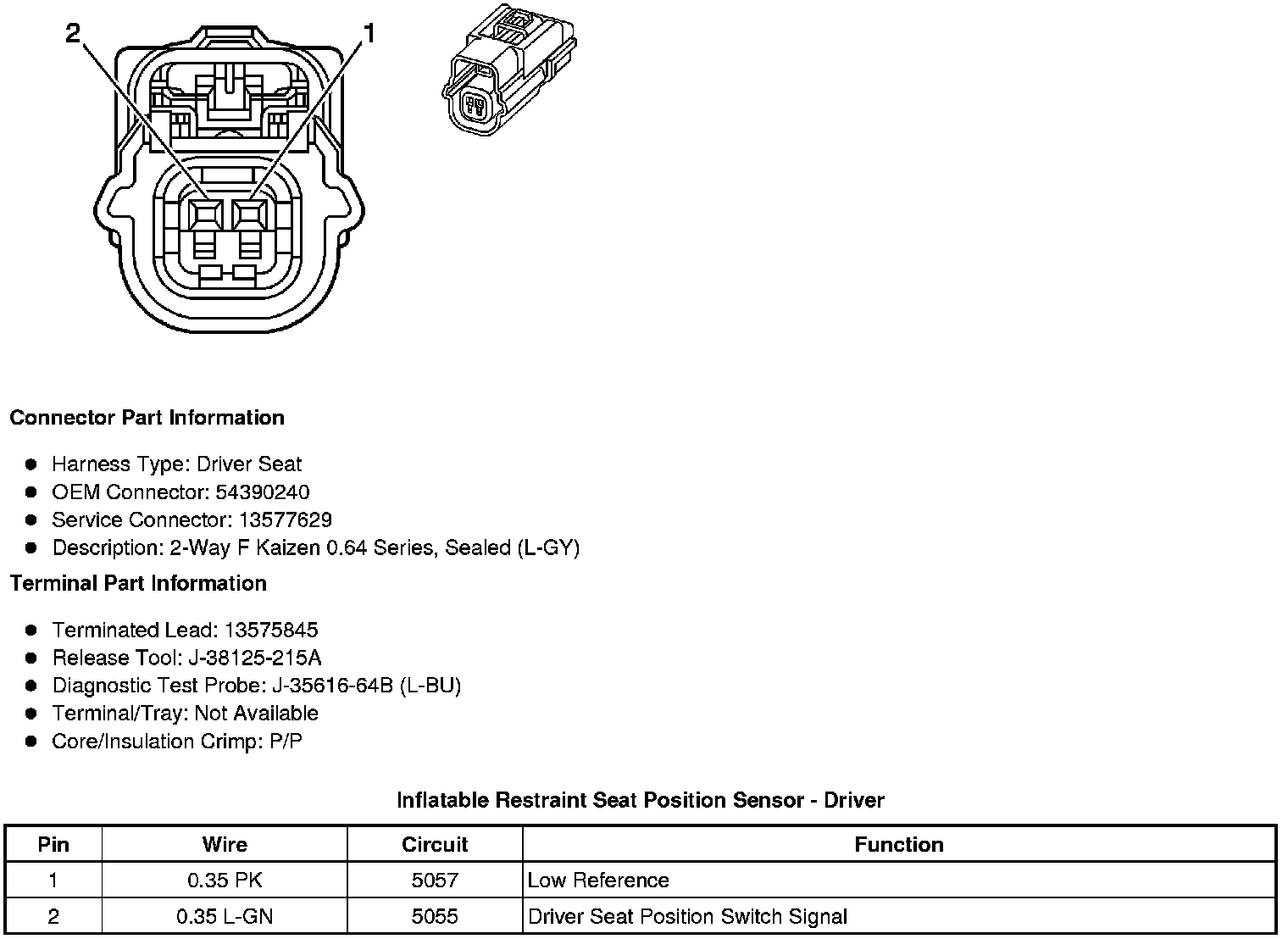

Inflatable Restraint Seat Position Sensor - Driver




Component Connector End Views

Inflatable Restraint Seat Position Sensor - Driver
