Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment

Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment

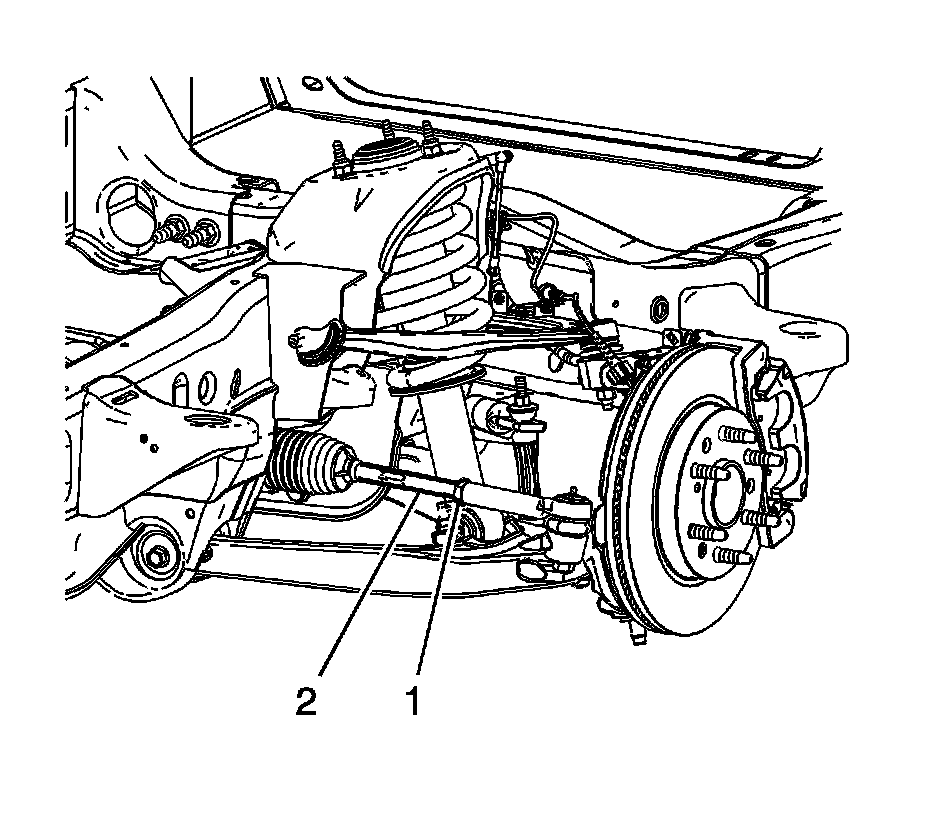

1. Loosen the jam nut on the inner tie rod (1).
2. Rotate the inner tie rod (2) to the required toe specification setting. Refer to Wheel Alignment Specifications Specifications.

Caution: Refer to Fastener Caution Fastener Caution.

3. Install the jam nut (1) on the tie rod and tighten to 75 Nm (55 lb ft).
4. Check the toe setting after tightening.
5. Re-adjust the toe setting if necessary.
