Power Window Lockout Switch: Locations

Door Component Views

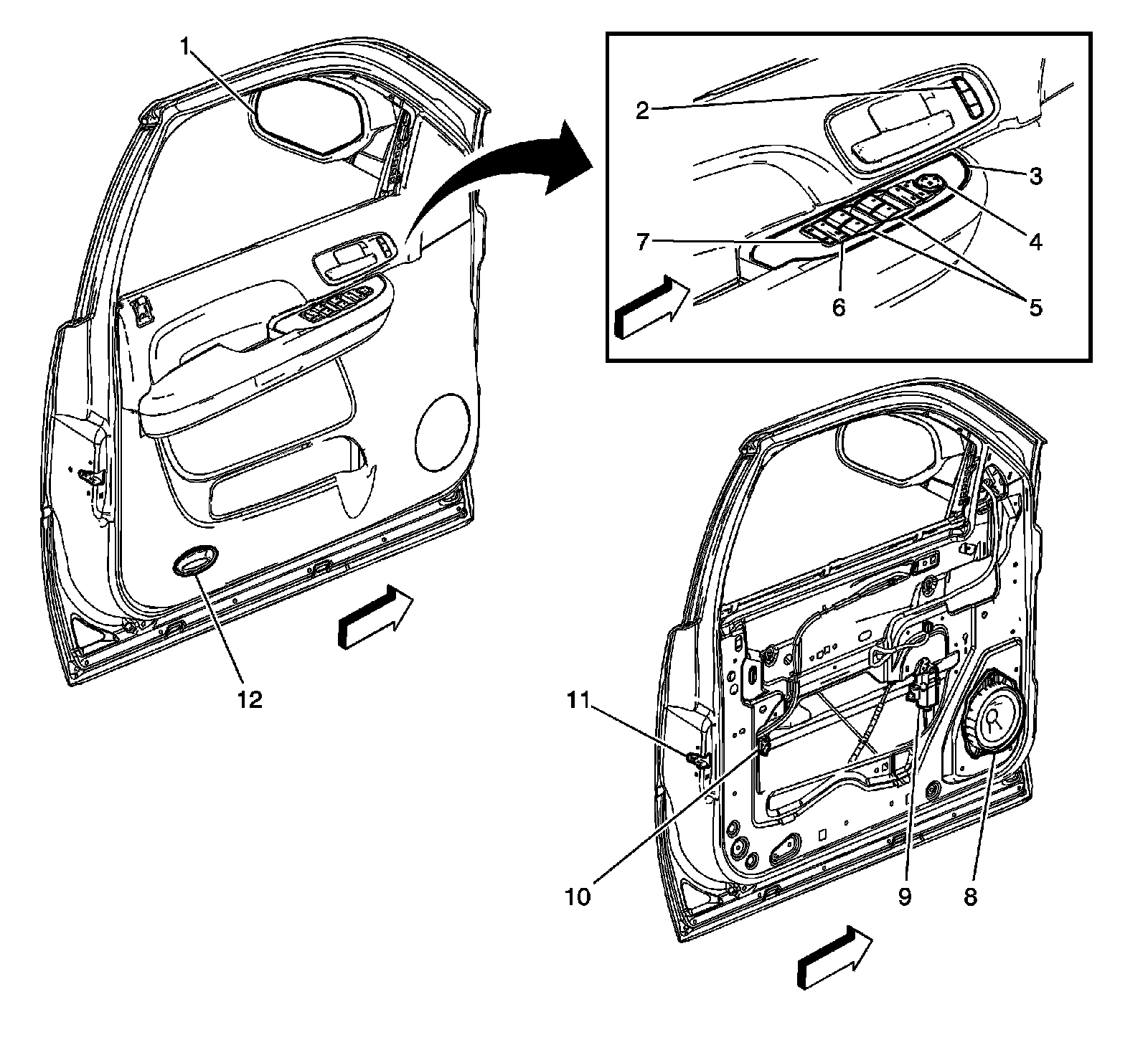

Driver Door Components




1 - Outside Rearview Mirror - Driver
2 - Heated Seat Switch - Driver (KA1)
2 - Memory/Heated and Cooled Seat Switch - Driver (AN3 with KB6)
2 - Memory/Heated Seat Switch - Driver (AN3 without KB6)
3 - Door Lock/Window Switch - Driver
4 - Outside Rearview Mirror Switch
5 - Window Switches
6 - Window Lock-Out Switch
7 - Door Lock Switch
8 - Speaker - Left Front
9 - Window Motor - Driver
10 - Inflatable Restraint Side Impact Sensor (SIS) - Left Front (ASF)
11 - Door Latch - Driver
12 - Door Courtesy Lamp - Driver (Z75)
