Inside Rearview Mirror Replacement

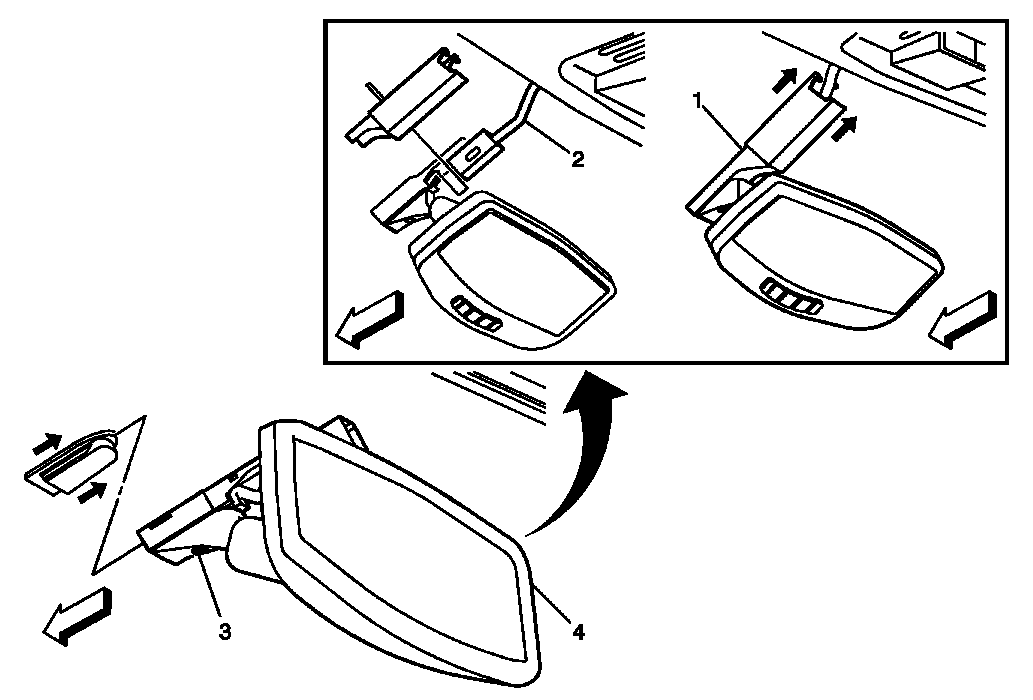

Fig 1: Inside Rearview Mirror Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Inside Rearview Mirror Electrical Connector Cover
2	Inside Rearview Mirror Electrical Connector
3	Inside Rearview Mirror Set Screw CAUTION: Refer to Fastener Caution . Procedure Adjust the mirror to the full upward position. Loosen the set screw located at the base of the mirror. Slide the mirror upward off of the rearview mirror button. Tighten 2 N.m (18 lb in)
4	Inside Rearview Mirror Procedure Refer to Control Module References for programming and setup information.
