Outside Rearview Mirror Replacement

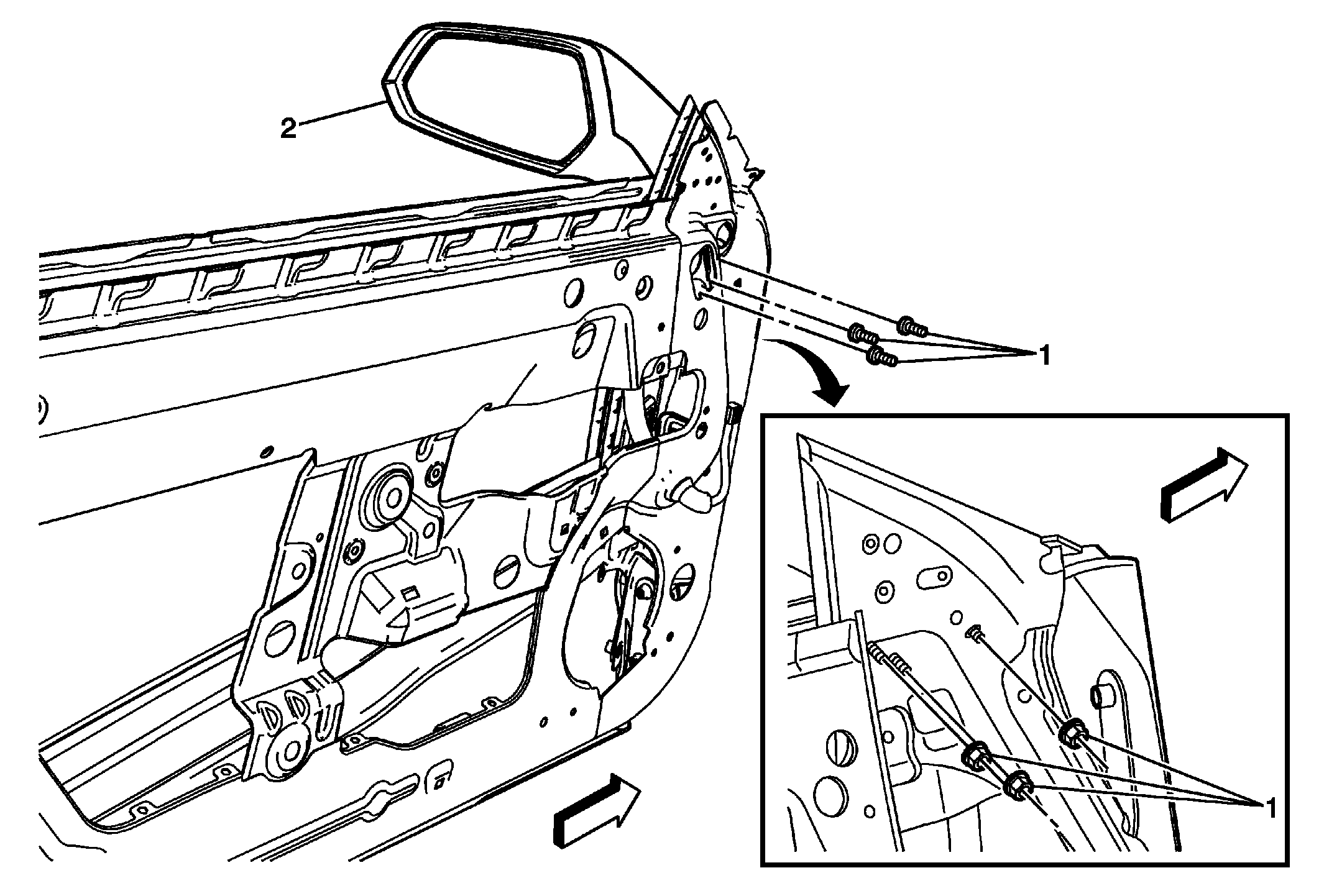

Fig 1: Outside Rearview Mirror And Nuts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . Preliminary Procedure Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Outside Rearview Mirror Nuts (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Remove the outside rearview mirror nuts access cover. Disconnect the electrical connector. Tighten 10 N.m (89 lb in)
2	Outside Rearview Mirror

Callout

Component Name

WARNING:

Preliminary Procedure Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .

Outside Rearview Mirror Nuts (Qty: 3)

CAUTION:

Procedure

Tighten
10 N.m (89 lb in)

Outside Rearview Mirror
