Engine Ground Cable Replacement (LSA)

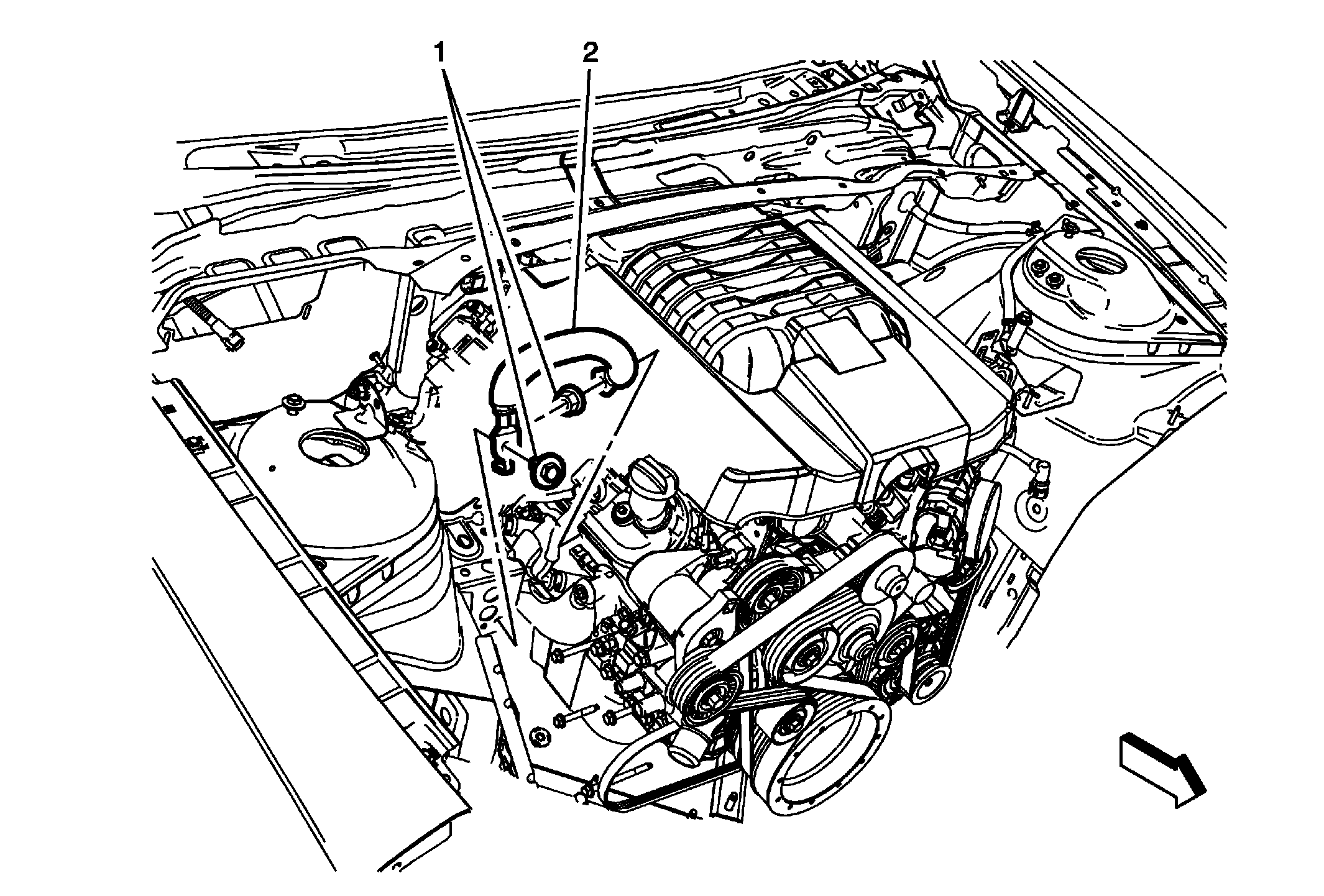

Fig 1: Engine Ground Cable & Fasteners
GM2727828Courtesy of GENERAL MOTORS COMPANY
Engine Ground Cable Replacement (LSA)

Callout Component Name
1 Engine Ground Cable Fasteners (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
25 N.m (18 lb ft)
2 Engine Ground Cable
