Remote Control Door Lock Receiver Replacement (Without BTV)

WARNING: This page is about a different car, the 2011 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

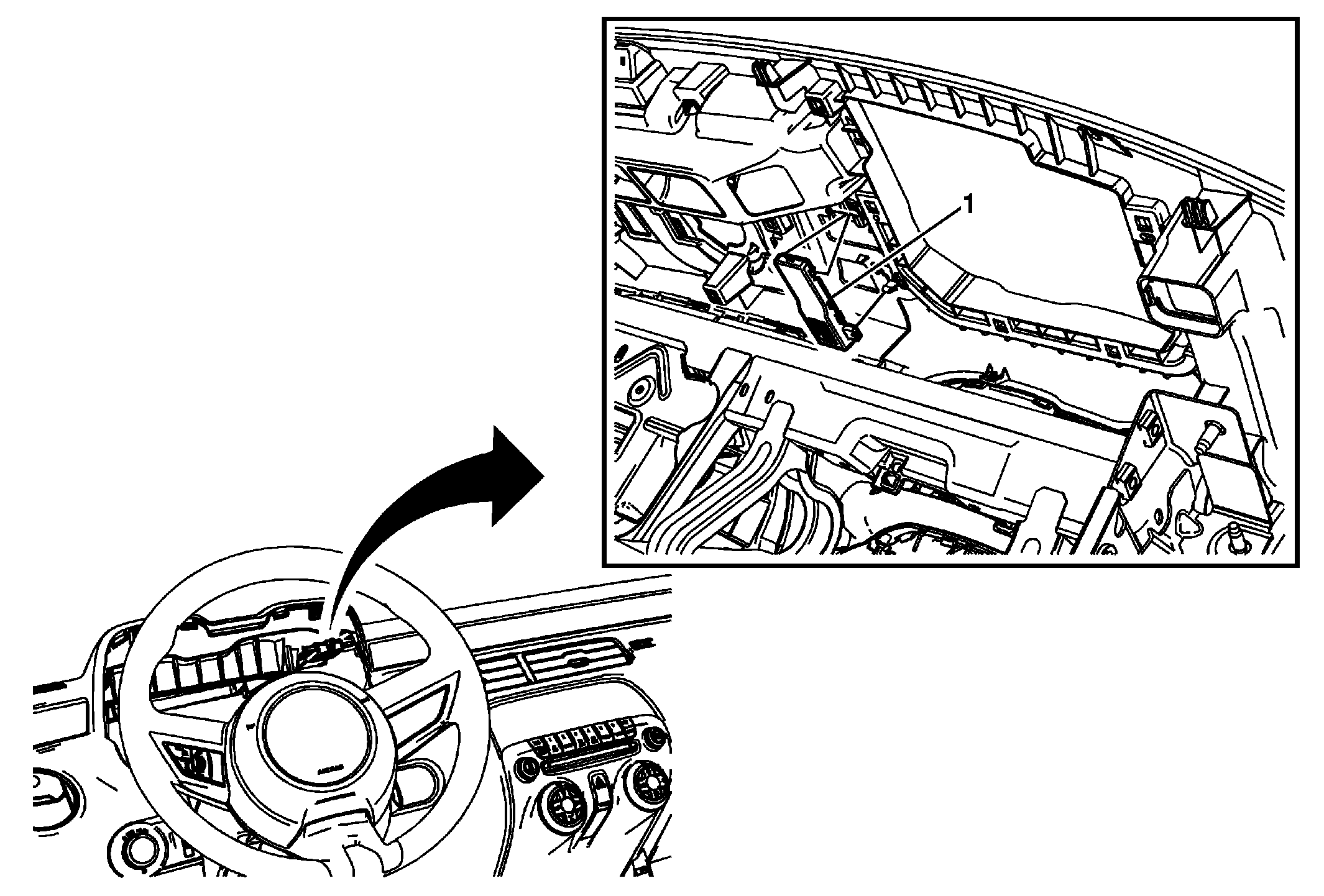

Fig 1: Remote Control Door Lock Receiver (Without BTV)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument cluster. Refer to Instrument Cluster Replacement .
1	Remote Control Door Lock Receiver Procedure Reach through opening and unsnap the receiver from the instrument panel trim pad. Disconnect the electrical connector. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure:
Remove the instrument cluster. Refer to Instrument Cluster Replacement .

Remote Control Door Lock Receiver

Procedure

Reach through opening and unsnap the receiver from the instrument panel trim pad.
Disconnect the electrical connector.
For programming and set up, refer to Control Module References .
