Top Center of Windshield Components




Passenger Compartment/Roof Component Views

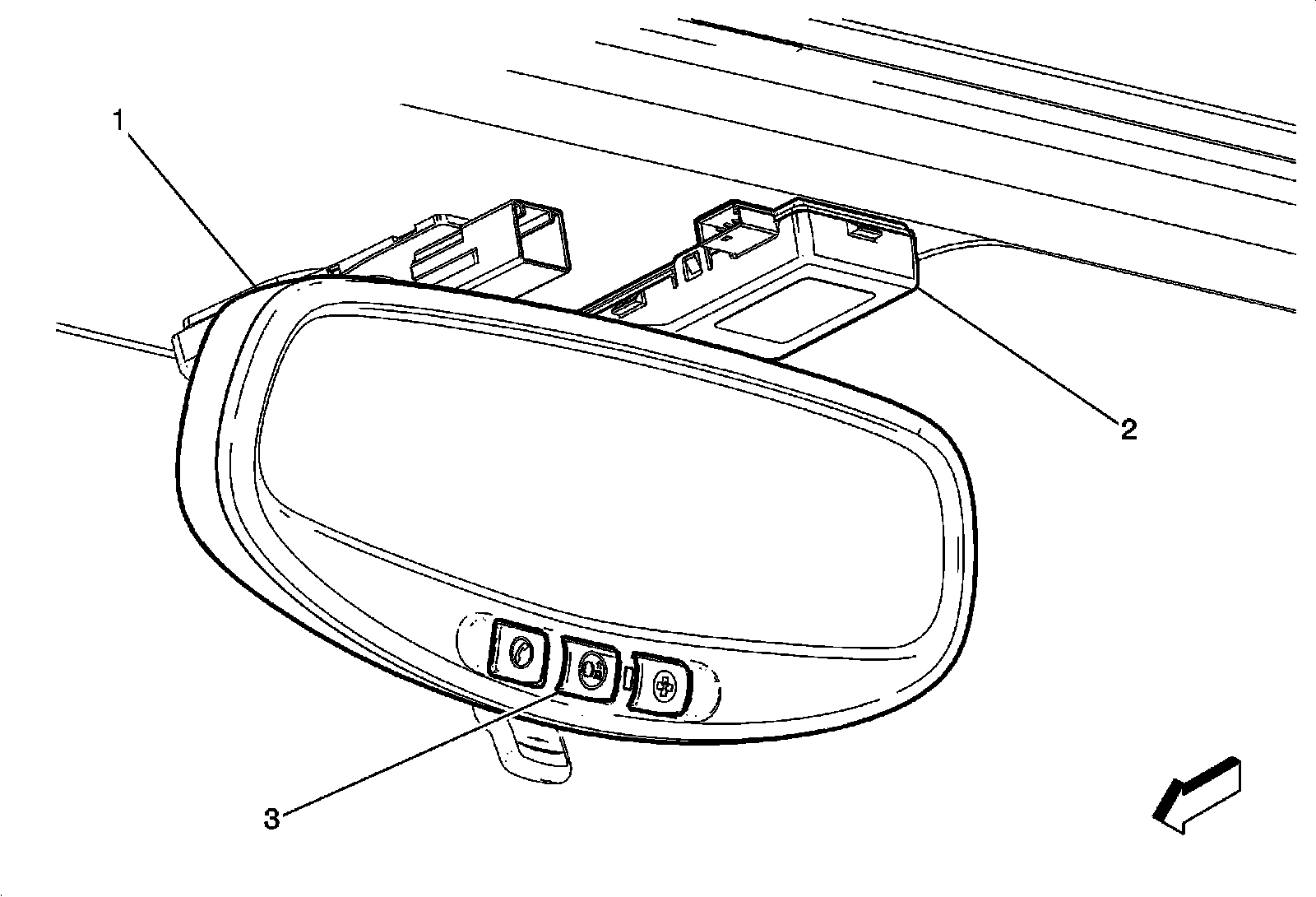

Top Center of Windshield Components





1 - A10 Inside Rearview Mirror

2 - K77 Remote Control Door Lock Receiver (BTV)

3 - S51 Telematics Button Assembly (UE1)
