Rear of Transmission Components (MV5)




Powertrain Component Views

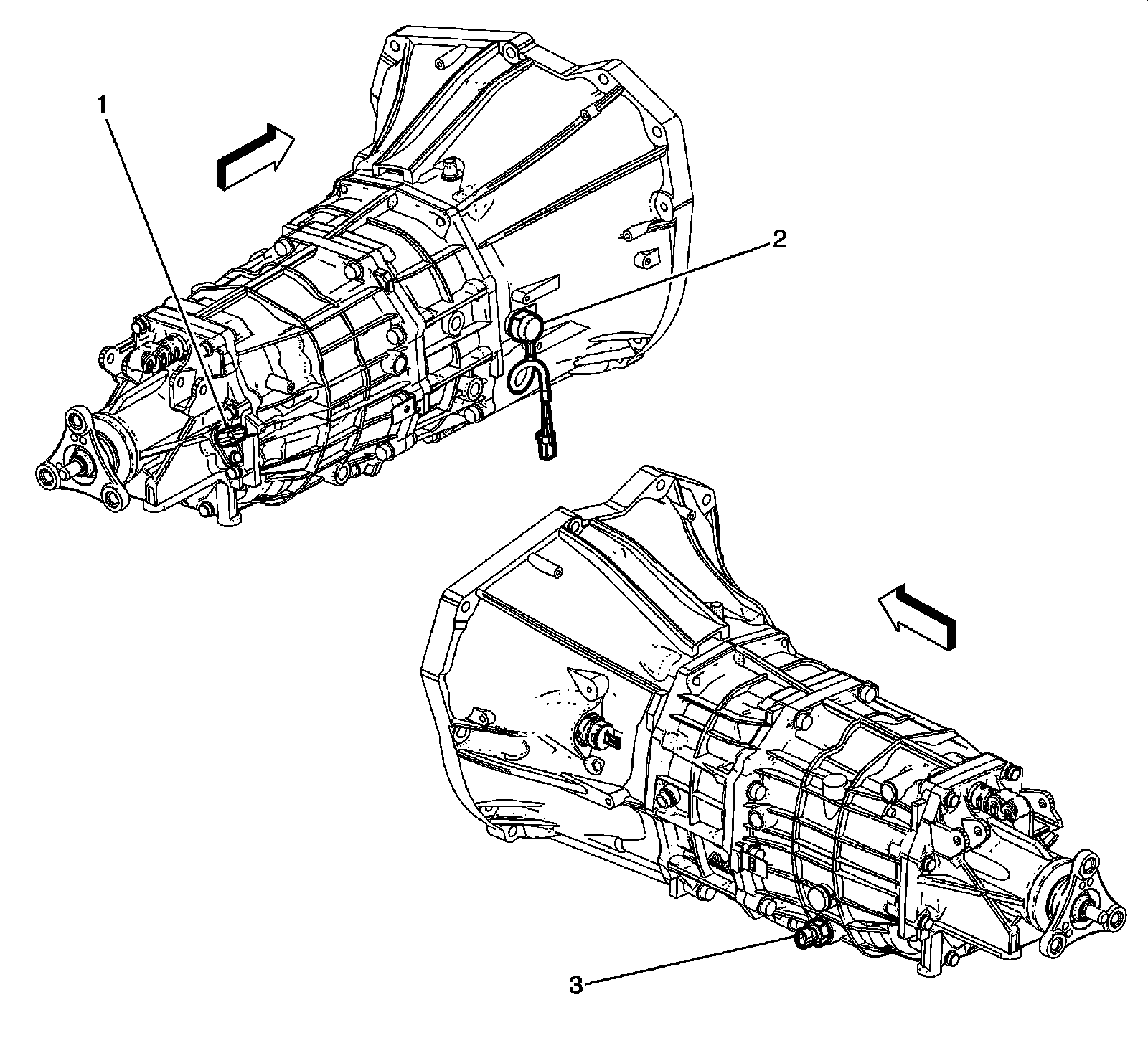

Rear of Transmission Components (MV5)





1 - B115 Vehicle Speed Sensor

2 - B16 Backup Lamp Switch

3 - B173 Manual Transmission Fluid Temperature Sensor
