Installation Procedure

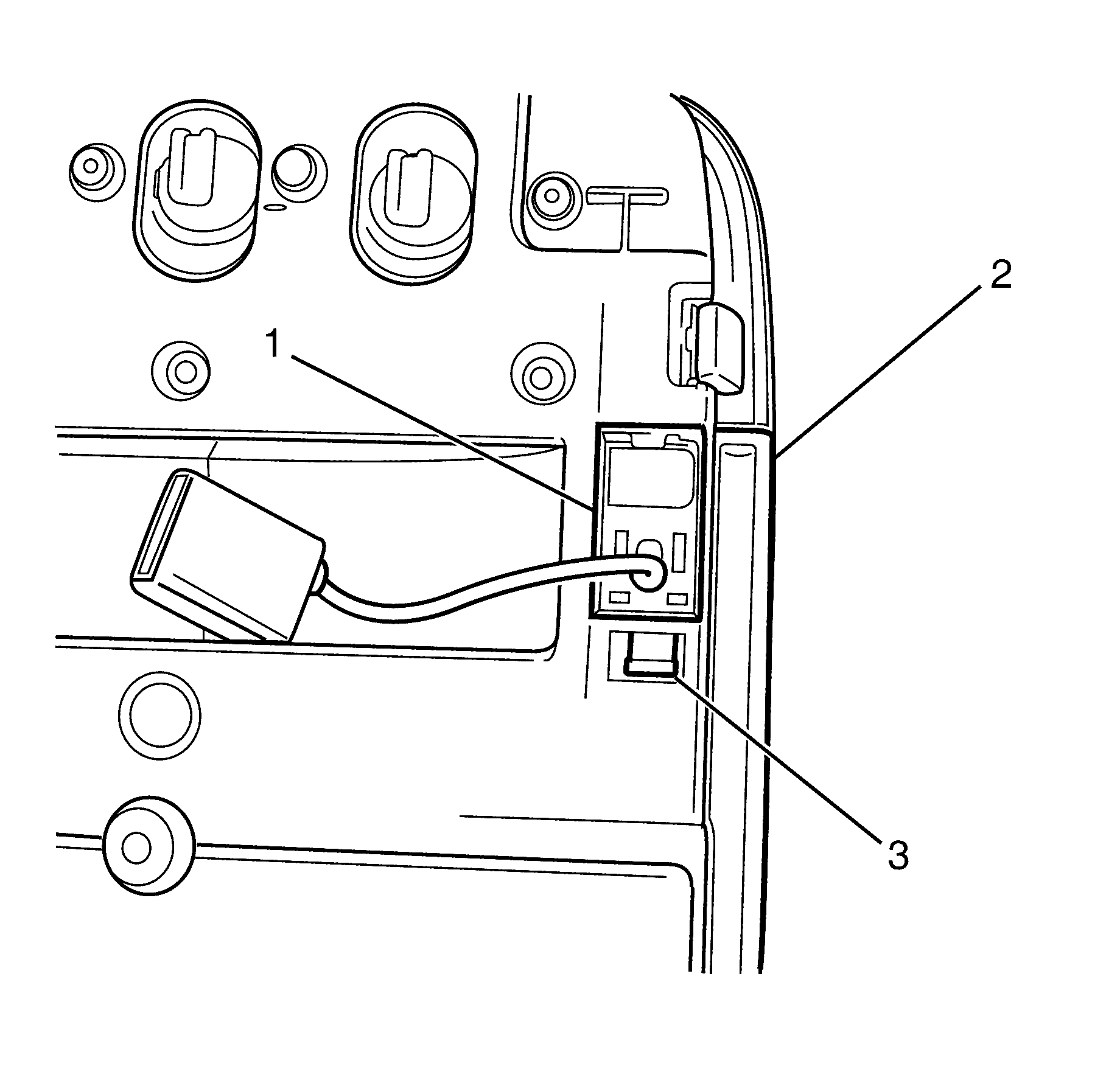

Fig 1: Bluetooth Microphone And Dome Lamp

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Listen for an audible click to make sure the bluetooth microphone to dome lamp retaining clip (3) engages to avoid an induced rattle condition.

Install the bluetooth microphone (1) to the dome lamp (2).
Install the front dome lamp assembly. Refer to Dome Lamp Replacement in Lighting Systems.
Connect the battery ground cable. Refer to Battery Negative Cable Disconnection and Connection (Primary) , Battery Negative Cable Disconnection and Connection (Auxiliary) .
