Chevrolet
>>
2012
>>
Caprice 6.0 2
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communications System
>>
Schematic Wiring Diagrams
>>
Body Control System Wiring Schematics
>>
Subsystem References (1 of 3) Wiring Schematics
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Subsystem References (1 of 3) Wiring Schematics

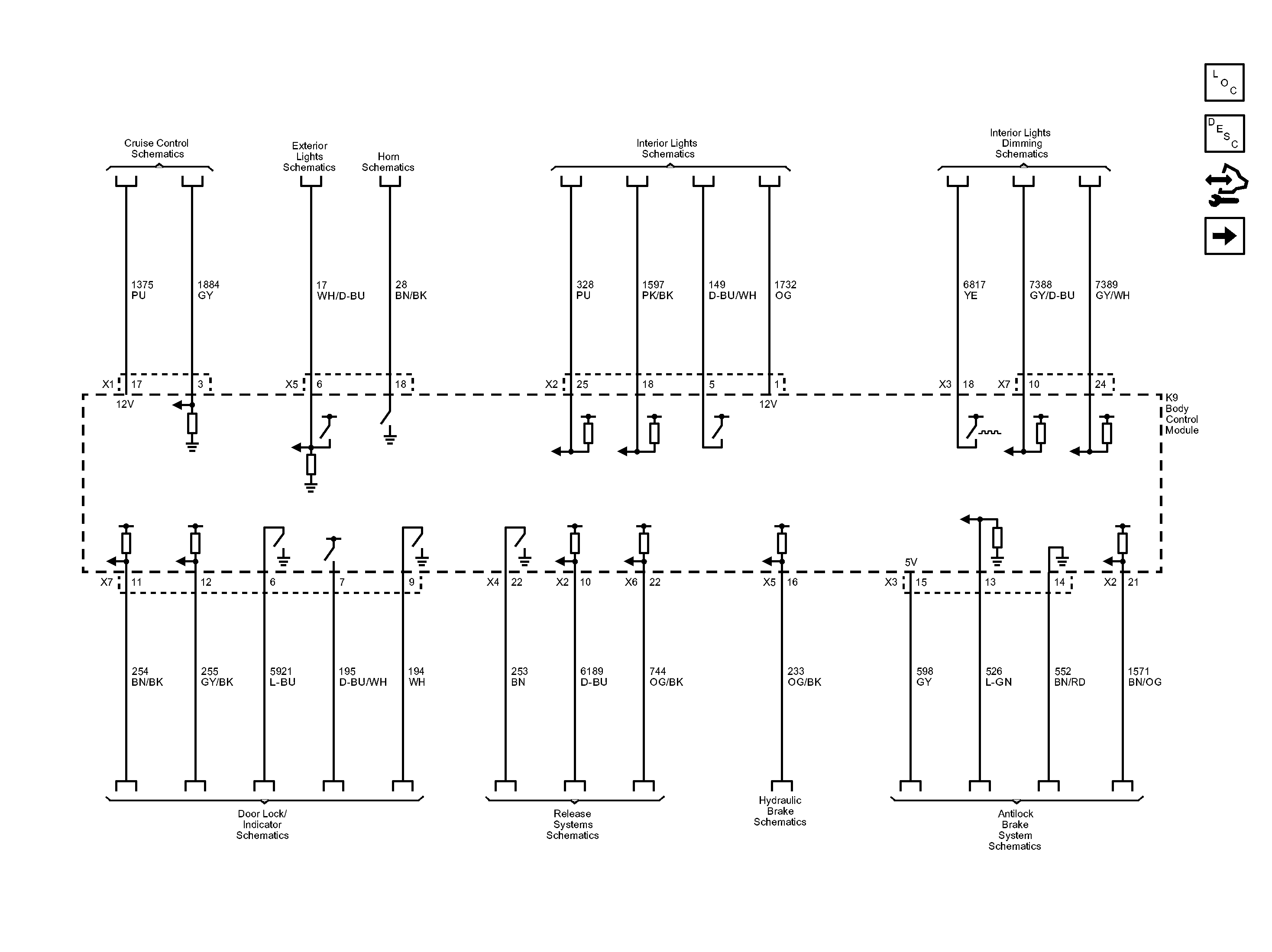

Fig 1: Subsystem References (1 of 3) Wiring Schematic
