Removal Procedure

WARNING: This page is about a different car, the 2011 Chevrolet Caprice. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim plate panel. Refer to Console Trim Plate Replacement (9C3) .

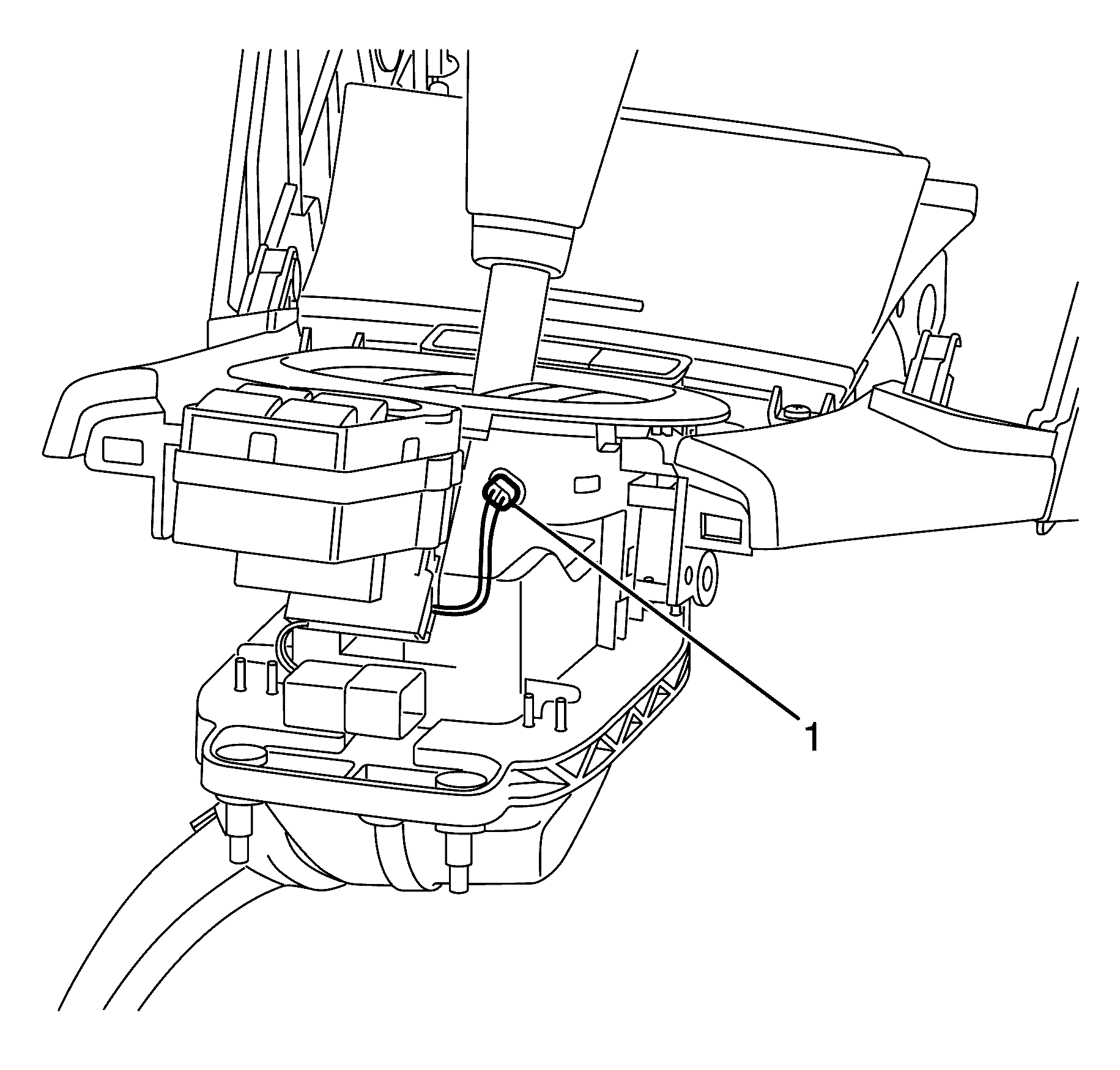

    2. Fig 1: Lamp Socket
    GM1947043Courtesy of GENERAL MOTORS CORP.
  2. Remove the transmission floor shift control indicator lamp from the rear of the shift control housing by turning the lamp socket (1) counter clockwise.
  3. Pull the transmission floor shift control indicator light bulb from the socket.
