Data Link Resistor

Luggage Compartment/Rear of Vehicle Component Views

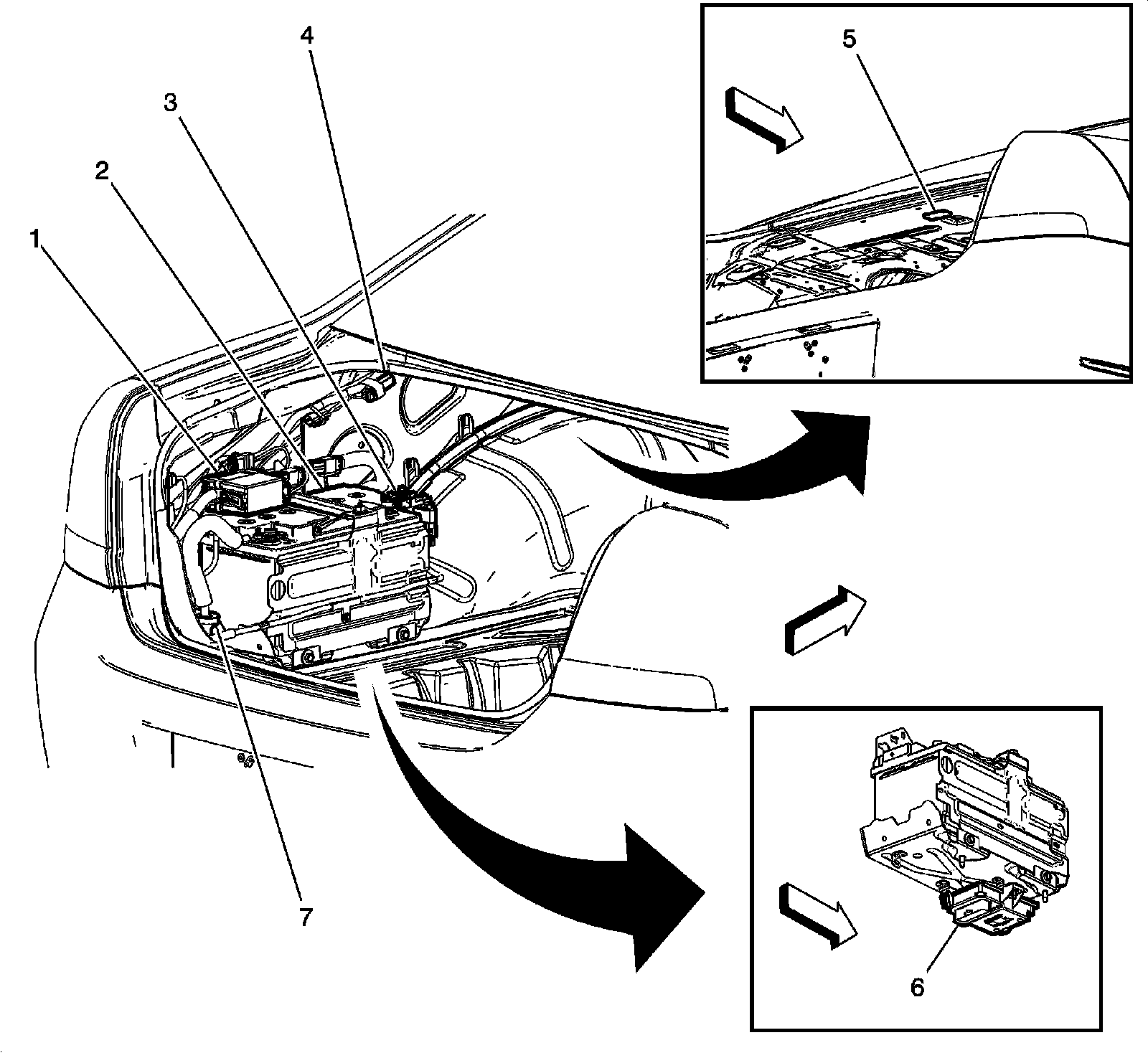

Left Side of the Rear Compartment Components





1 - X53A Fuse Block - Rear Body

2 - C1 Battery

3 - X50D Fuse Block - Battery

4 - R6 Data Link Resistor

5 - E8S Rear Compartment Courtesy Lamp

6 - K27 Fuel Pump Control Module

7 - B18 Battery Current Sensor
