Manifold Pressure/Vacuum Sensor: Service and Repair

Manifold Absolute Pressure Sensor Replacement

Removal Procedure





1. Ignition OFF.

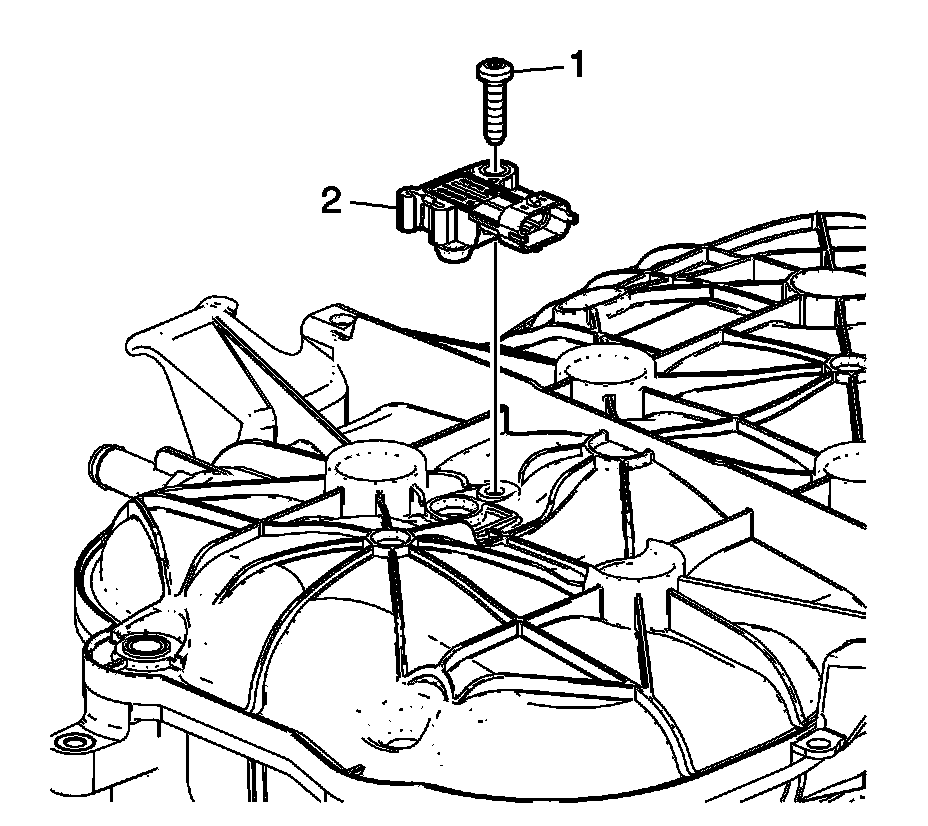

2. Disconnect the engine wiring harness from the manifold absolute pressure (MAP) sensor (2).

3. Remove the MAP sensor to intake manifold retaining bolt (1).

4. Remove the MAP sensor (2) from the intake manifold assembly.

5. Discard the MAP sensor seal.

Installation Procedure





1. Install a NEW MAP sensor seal.

2. Install the MAP sensor (2) to the intake manifold assembly.

Caution:
Refer to Fastener Caution Fastener Caution.

3. Install the MAP sensor to intake manifold retaining bolt (1) and tighten to 4 Nm (35 lb in).

4. Connect the engine wiring harness to the manifold absolute pressure (MAP) sensor (2).
