Flex Plate

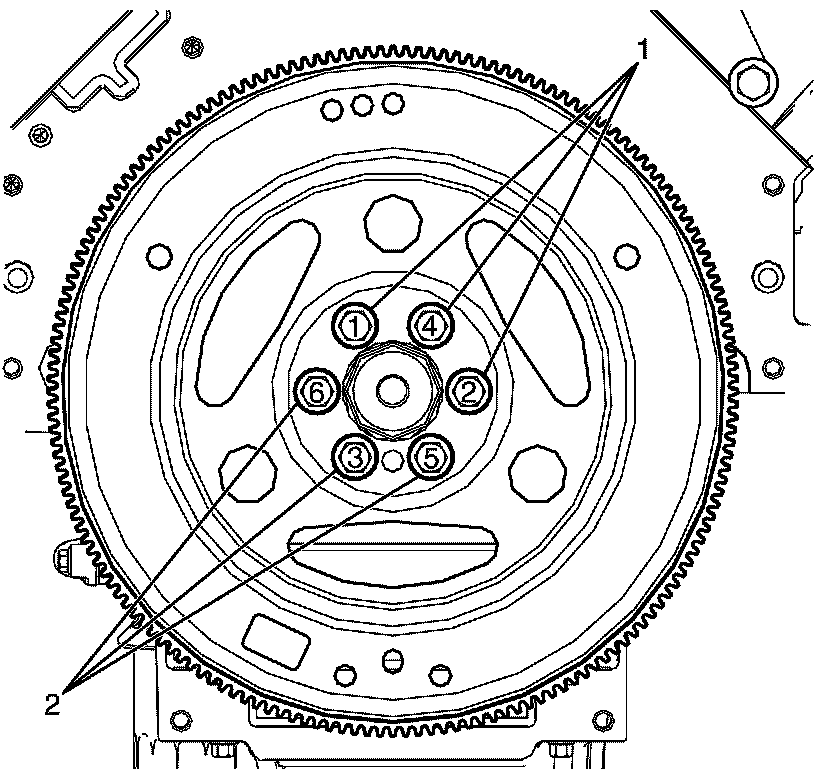

Tighten the automatic transmission flex plate to crankshaft retaining bolts (1) in sequence from 1 to 6.

Tighten the bolts (1 - 6) a first pass in sequence to 20 Nm (15 lb ft).

Tighten the bolts (1 - 6) a second pass in sequence to 50 Nm (37 lb ft).

Tighten the bolts (1 - 6) a final pass in sequence to 100 Nm (74 lb ft).
