Body Control Systems

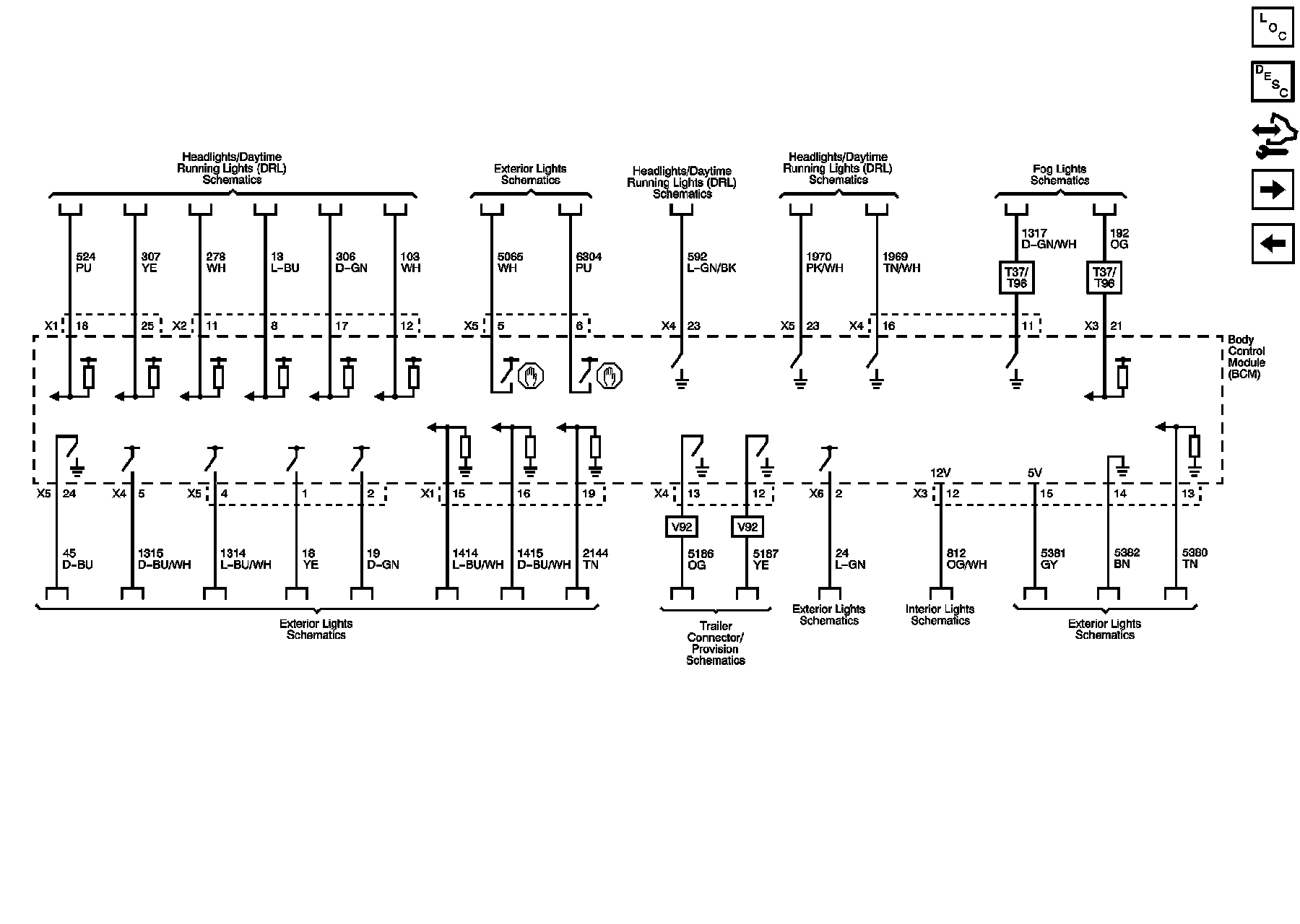

Body Control System Schematics

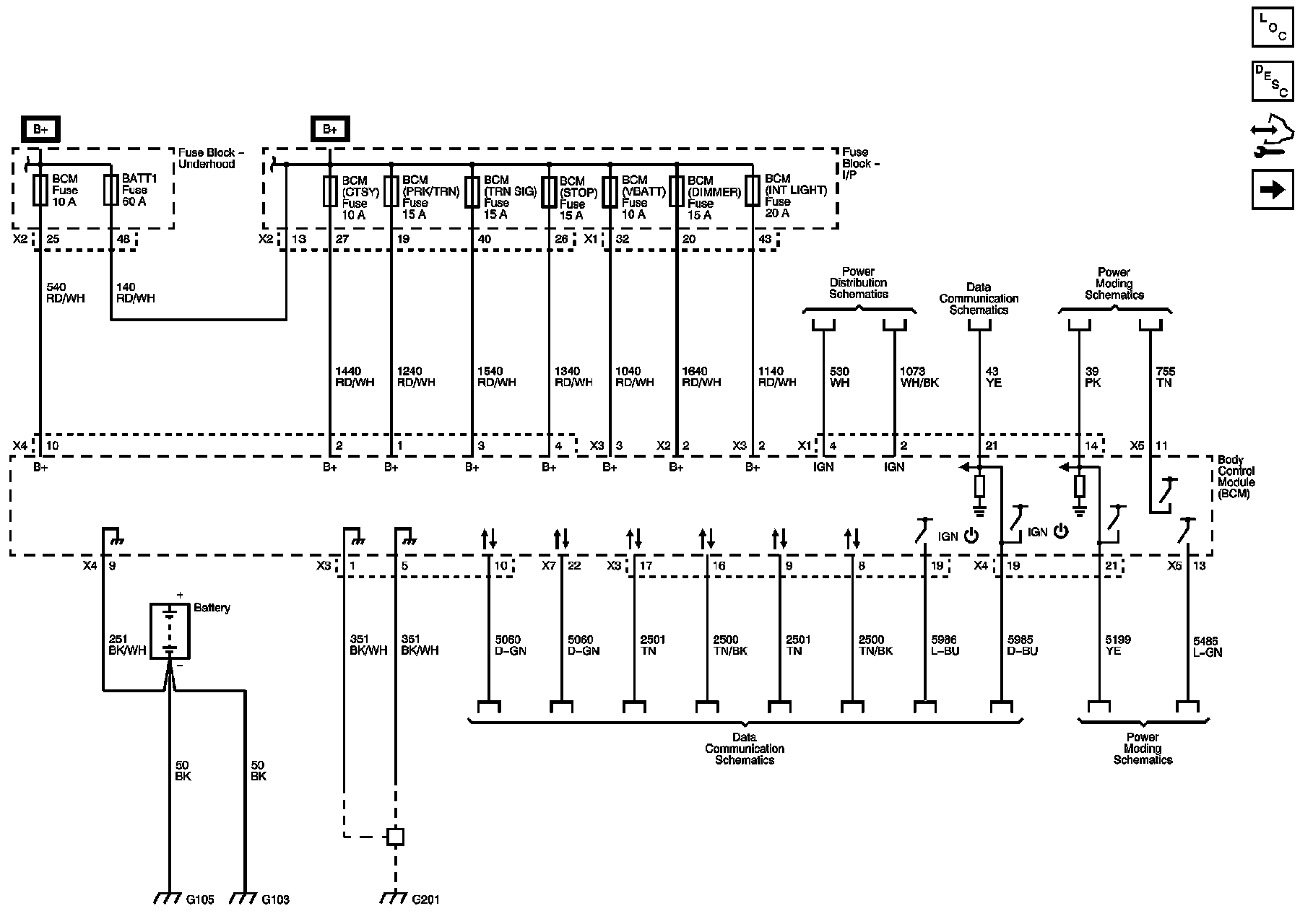

Power, Ground, and Data Communications

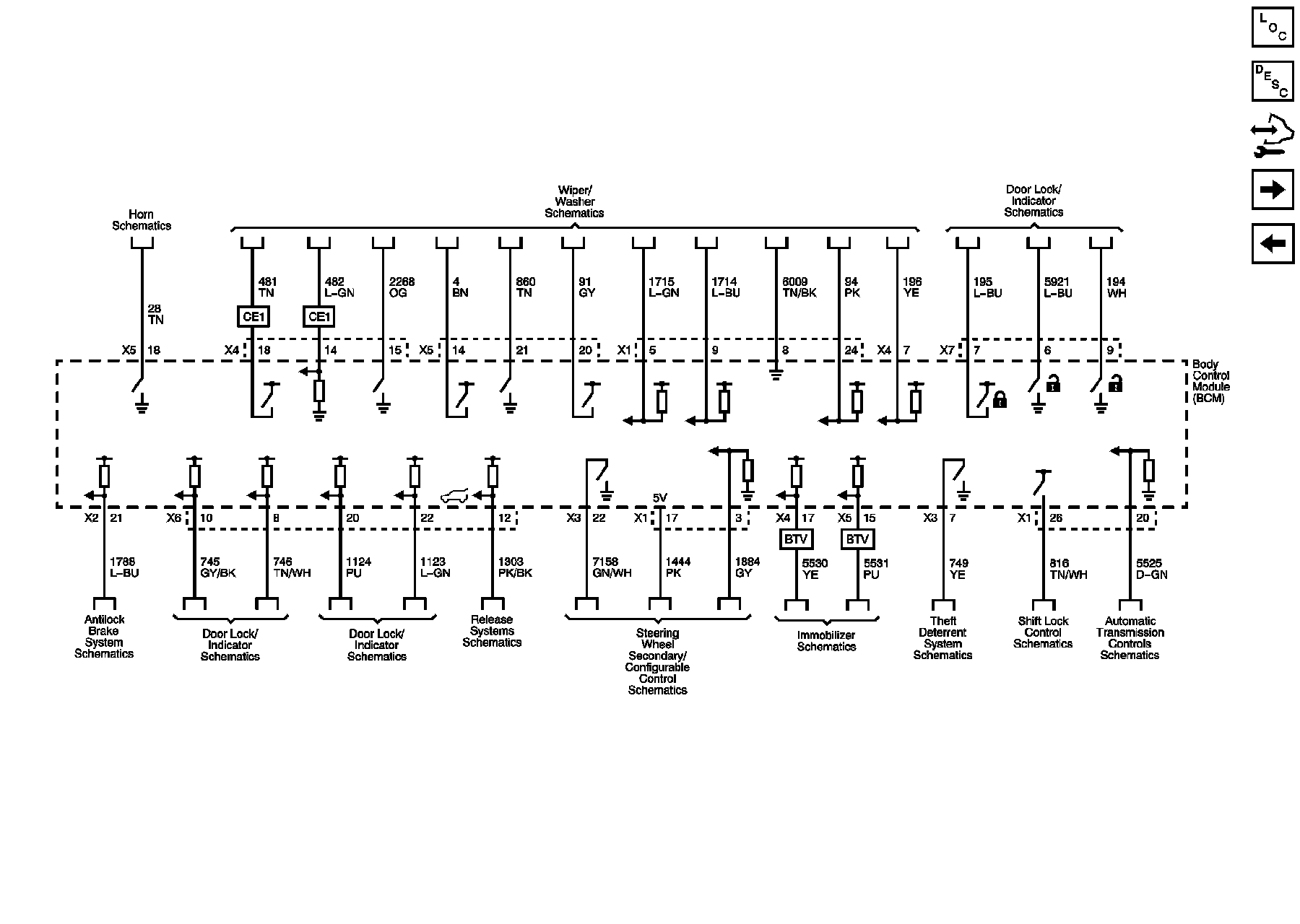

Subsystem References (1 of 3)






Subsystem References (2 of 3)






Subsystem References (3 of 3)
