Front Fascia Lighting Components

Front of Vehicle/Engine Compartment Component Views

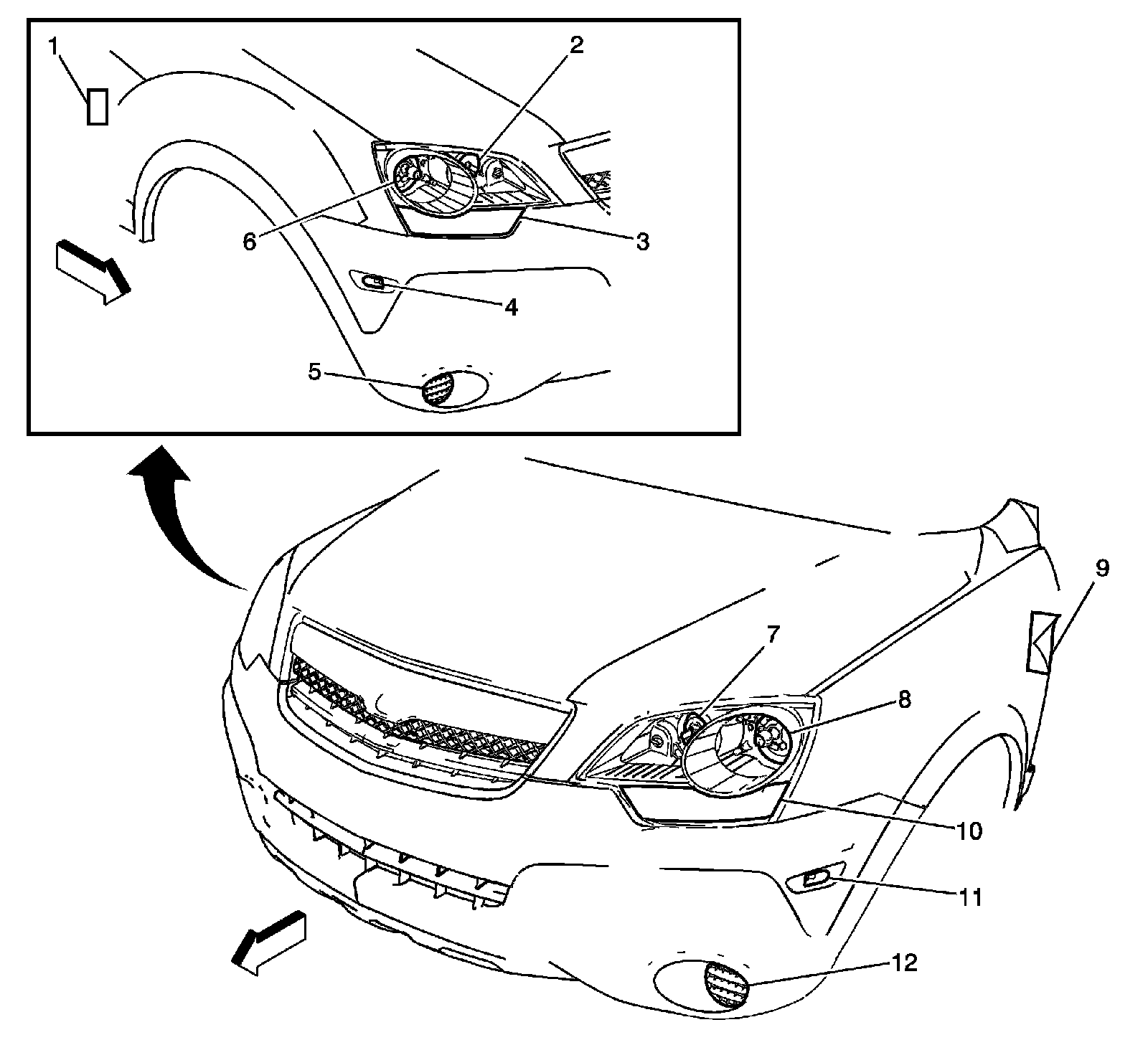

Front Fascia Lighting Components





1 - Turn Signal Repeater Lamp - Right

2 - Headlamp - Right High Beam

3 - Park/Turn Signal Lamp - Right

4 - Side Marker Lamp - Right Front

5 - Fog Lamp - Right Front (T37/T96)

6 - Headlamp - Right Low Beam

7 - Headlamp - Left High Beam

8 - Headlamp - Left Low Beam

9 - Turn Signal Repeater Lamp - Left

10 - Park/Turn Signal Lamp - Left

11 - Side Marker Lamp - Left Front

12 - Fog Lamp - Left Front (T37/T96)
