Relay Box: Locations

Harness Routing Views

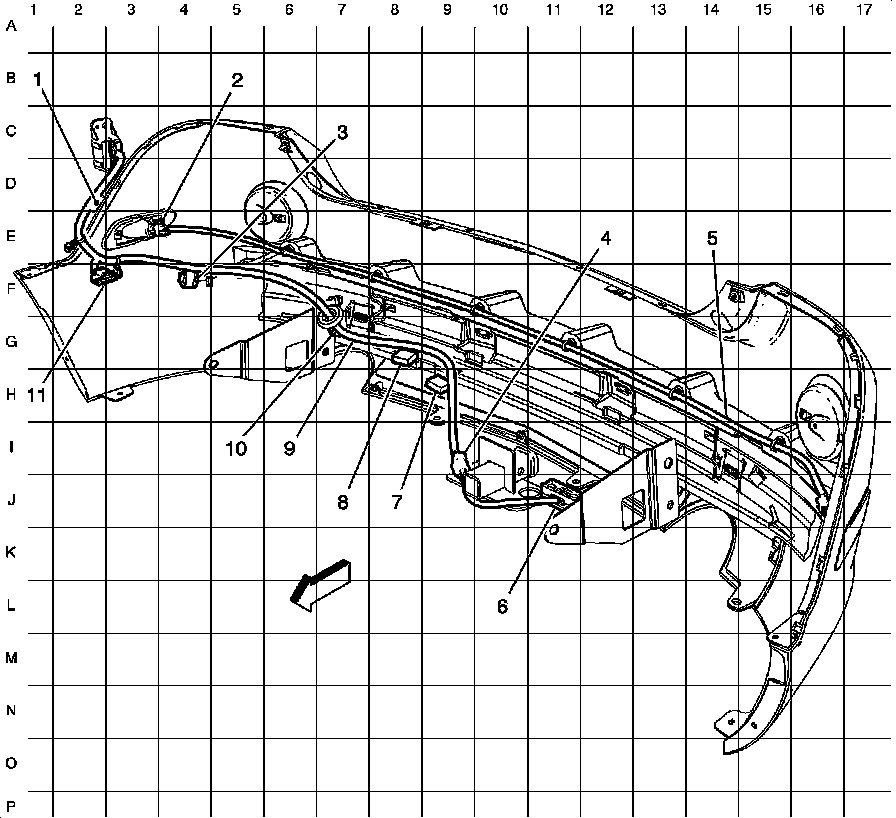

Trailer and Rear Side Marker Lamp Harness Routing





1 - J404

2 - Side Marker Lamp - Right Rear

3 - X409

4 - X432

5 - Rear Marker Lamp Harness

6 - Trailer Adaptor Plug

7 - Relay (V92)

8 - Relay (V92)

9 - Trailer Harness (V92)

10 - X430

11 - X410
