Manifold Pressure/Vacuum Sensor: Locations

Powertrain Component Views

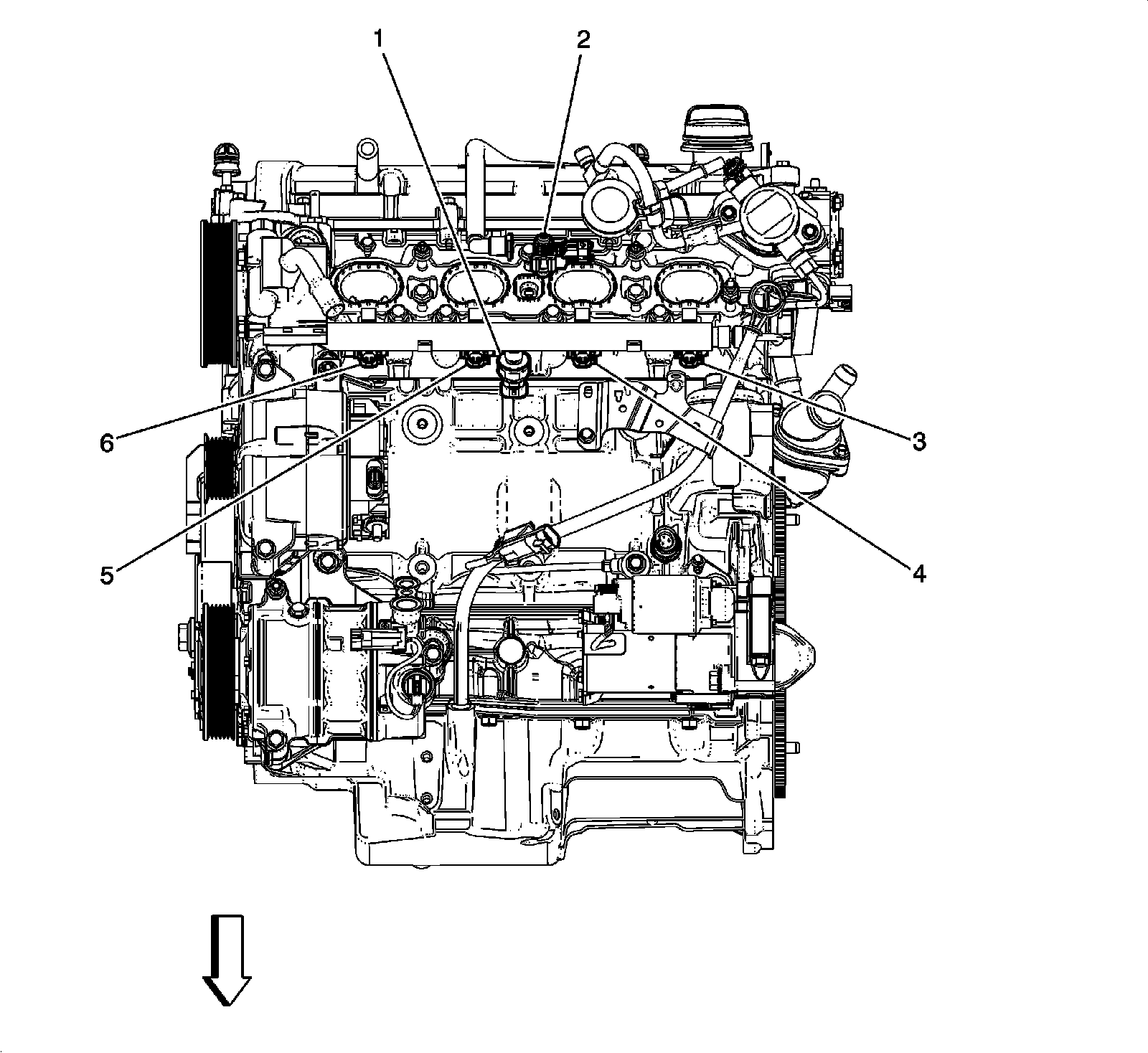

Front Engine Components (LEA 2 of 2)





1 - Fuel Rail Pressure Sensor

2 - Manifold Absolute Pressure Sensor

3 - Fuel Injector 4

4 - Fuel Injector 3

5 - Fuel Injector 2

6 - Fuel Injector 1
