Left Front Engine Components

Powertrain Component Views

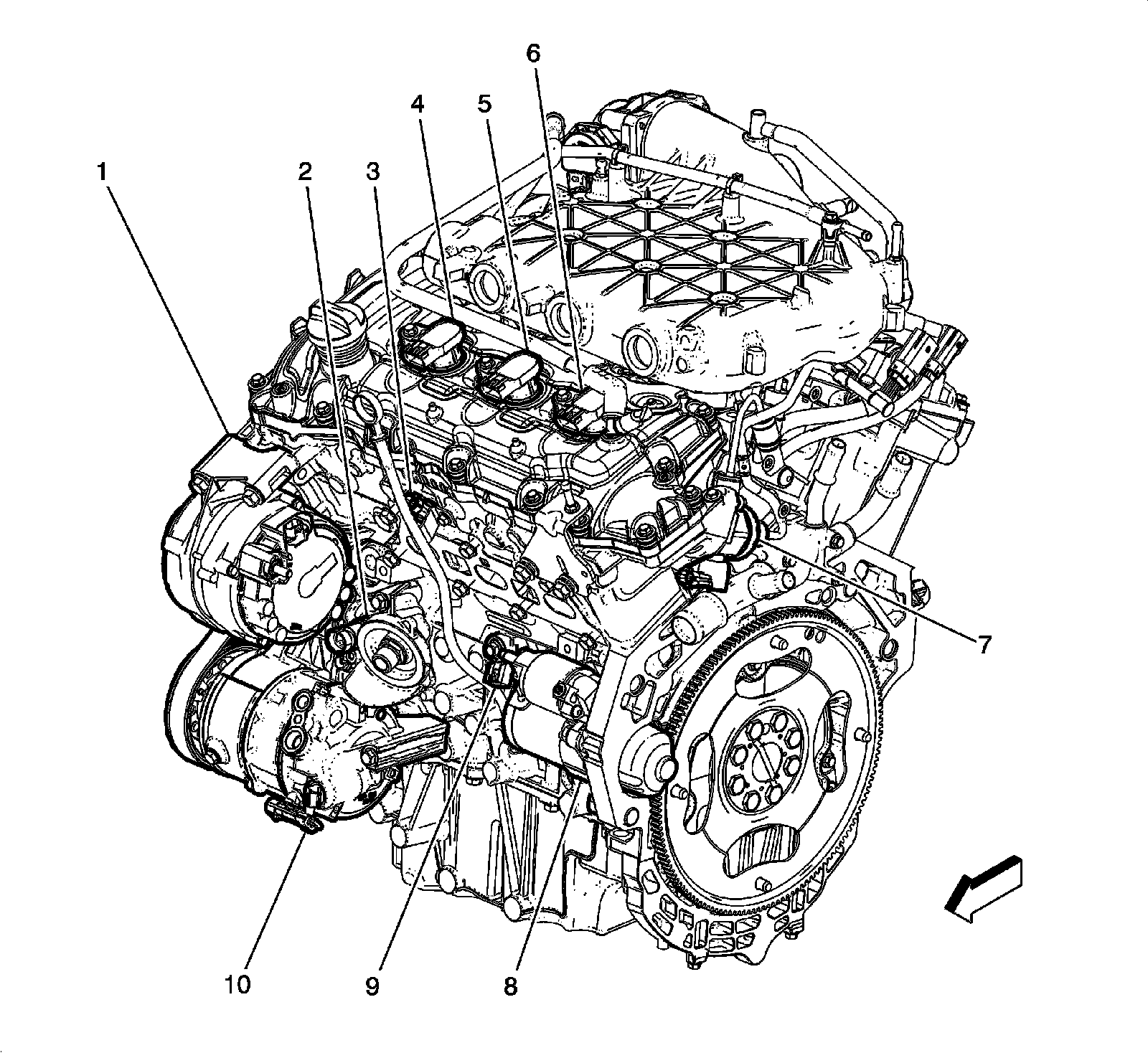

Left Front Engine Components (LFW)





1 - Generator

2 - Engine Oil Pressure Switch

3 - Engine Coolant Temperature Sensor

4 - Ignition Coil 2

5 - Ignition Coil 4

6 - Ignition Coil 6

7 - High Pressure Fuel Pump

8 - Starter Motor

9 - Knock Sensor 2

10 - A/C Compressor
