Communication Center Call Transceiver Replacement

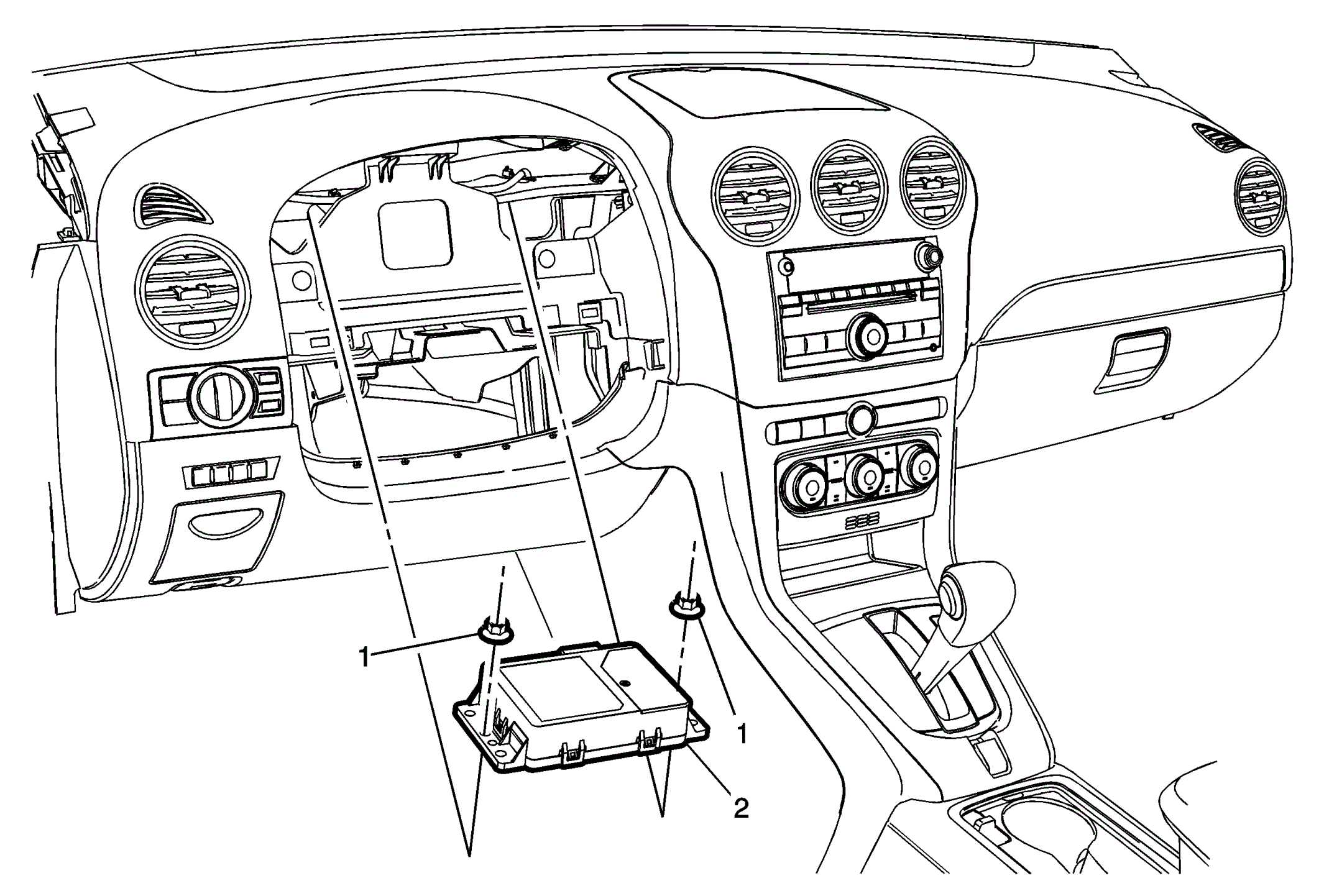

Fig 1: Communication Center Call Transceiver

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument cluster. Refer to Instrument Cluster Replacement .
1	Communication Center Call Transceiver Nuts (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Communication Center Call Transceiver Procedure Disconnect the electrical connector. Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedure
Remove the instrument cluster. Refer to Instrument Cluster Replacement .

Communication Center Call Transceiver Nuts (Qty: 2)

CAUTION:

Communication Center Call Transceiver

Procedure
