Catalytic Converter Heat Shield Replacement (3.0L-Rear)

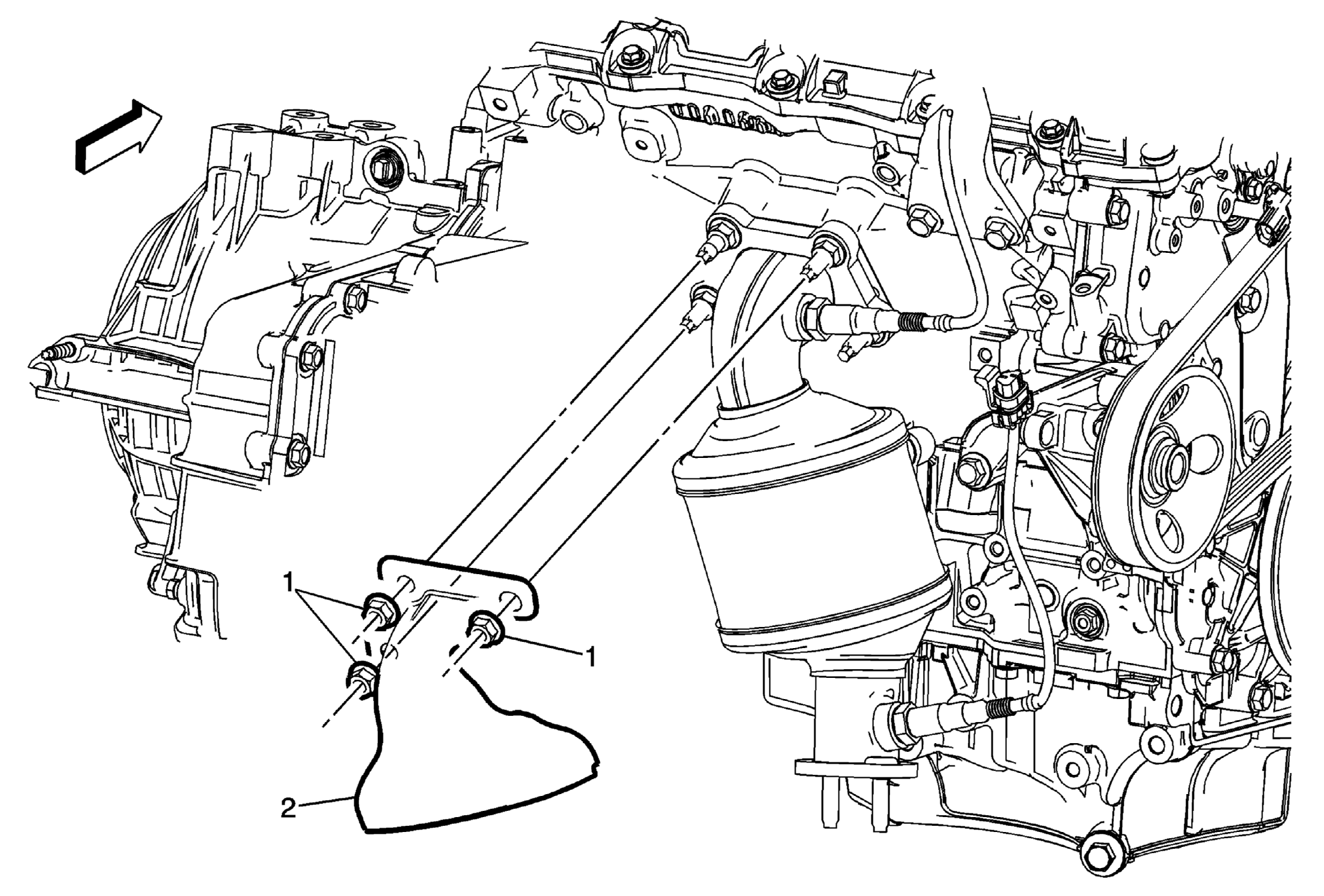

Fig 1: Catalytic Converter Heat Shield - Rear

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
1	Catalytic Converter Heat Shield Nuts (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 22 (16 lb ft)
2	Catalytic Converter Heat Shield-Right
