Installation Procedure

    Fig 1: View Of Ignition Coils
    GM1578474Courtesy of GENERAL MOTORS COMPANY
  1. Install the ignition coil(s).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the ignition coil bolt(s).

    Tighten

    Tighten the bolt(s) to 10 N.m (89 lb in).

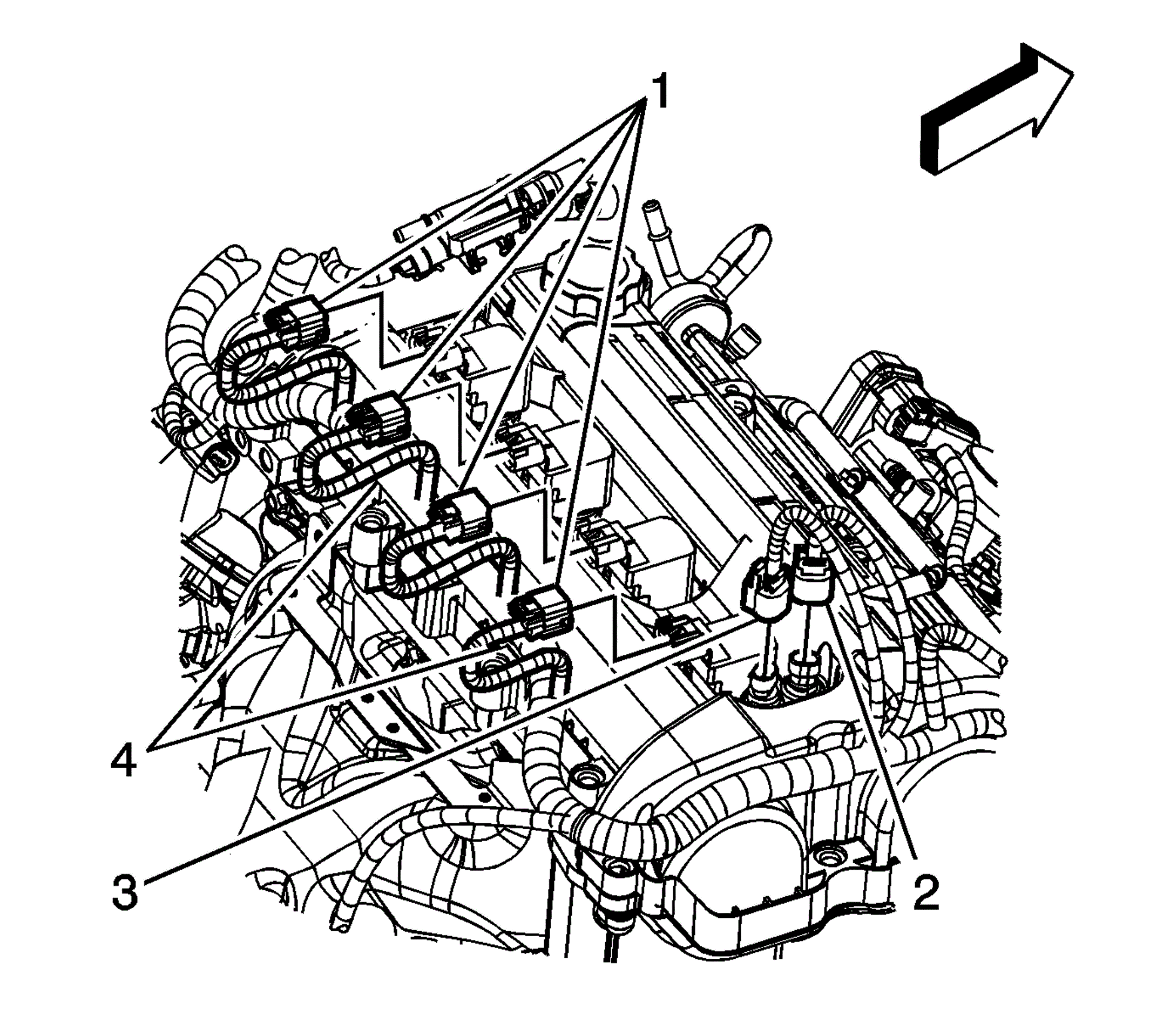

    3. Fig 2: Identifying Engine Wiring Harness Electrical Connectors
    GM1811485Courtesy of GENERAL MOTORS COMPANY
  3. Connect the engine wiring harness electrical connector(s) (1) to the ignition coil(s).
  4. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
  5. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
