Removal Procedure

  1. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .

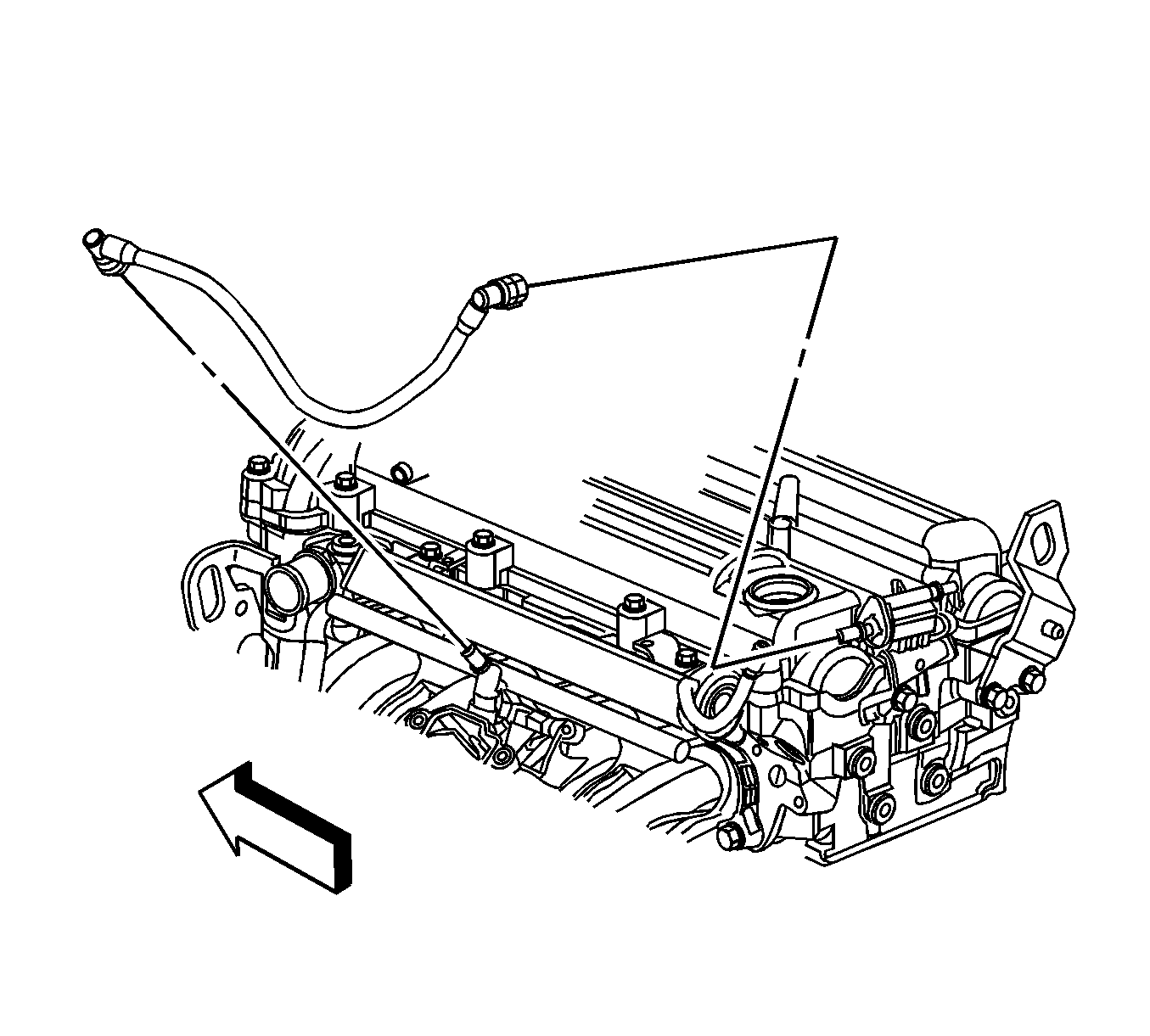

    2. Fig 1: EVAP Canister Purge Valve Tube
    GM1571757Courtesy of GENERAL MOTORS COMPANY
  2. Remove the evaporative emission (EVAP) canister purge tube from the intake manifold. Refer to Plastic Collar Quick Connect Fitting Service .
  3. Reposition the EVAP canister purge tube out of the way.
  4. Disconnect and reposition the fuel injector wiring harness out of the way .
    5. Fig 2: Identifying MAP Sensor
    GM1581050Courtesy of GENERAL MOTORS COMPANY
  5. Disconnect the engine harness electrical connector from the manifold absolute pressure (MAP) sensor.
  6. Remove the MAP sensor and seal.
