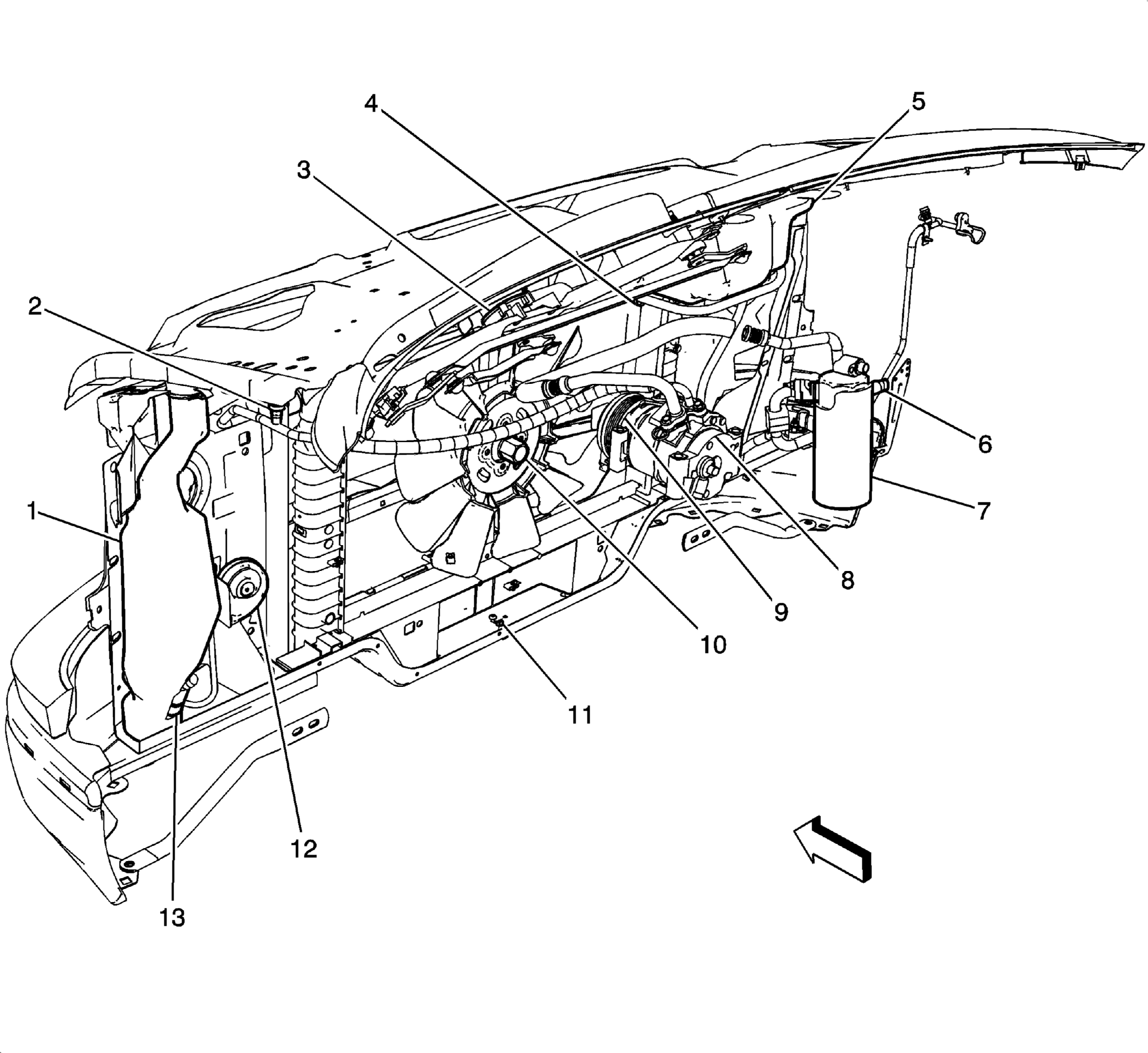

Front of Engine Compartment
| Callout | Component Name |
|---|---|
| 1 | Windshield Washer Solvent Container |
| 2 | A/C Refrigerent Pressure Sensor (C60) |
| 3 | Windshield Wiper Motor |
| 4 | Engine Coolant Level Switch (LMM) |
| 5 | Coolant Surge Tank |
| 6 | A/C Low Pressure Switch (C60) |
| 7 | A/C Accumulator (C60) |
| 8 | A/C Compressor (C60) |
| 9 | A/C Compressor Clutch (C60) |
| 10 | Engine Cooling Fan Clutch |
| 11 | Inflatable Restraint Front End Sensor |
| 12 | Horn Assembly |
| 13 | Windshield Washer Fluid Pump |
