Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 GMC Savana Special, 2010 GMC Savana Camper Special, 2010 GMC Savana, 2010 Chevrolet RV Cutaway, and 2010 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

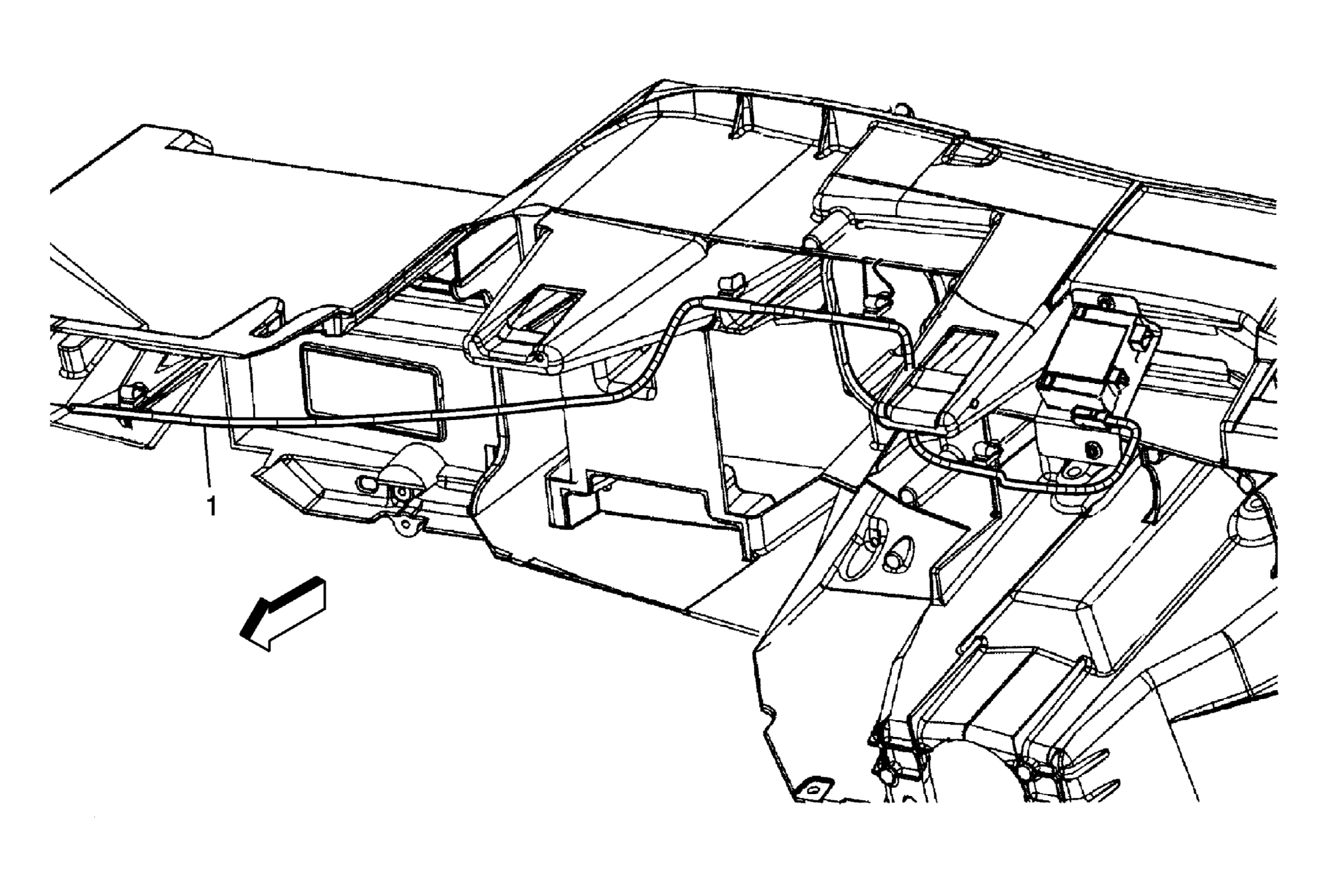

Fig 1: Identifying Instrument Panel Ignition Lock Key Transmitter Antenna

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Pad Replacement .
1	Ignition Lock Key Transmitter Antenna Procedure Disconnect the antenna from the module. Disconnect the antenna from the instrument panel by snapping the wiring clips from the instrument panel assembly.

Callout

Component Name

Preliminary Procedure:
Remove the instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Pad Replacement .

Ignition Lock Key Transmitter Antenna

Procedure

Disconnect the antenna from the module.
Disconnect the antenna from the instrument panel by snapping the wiring clips from the instrument panel assembly.
