Engine Compartment

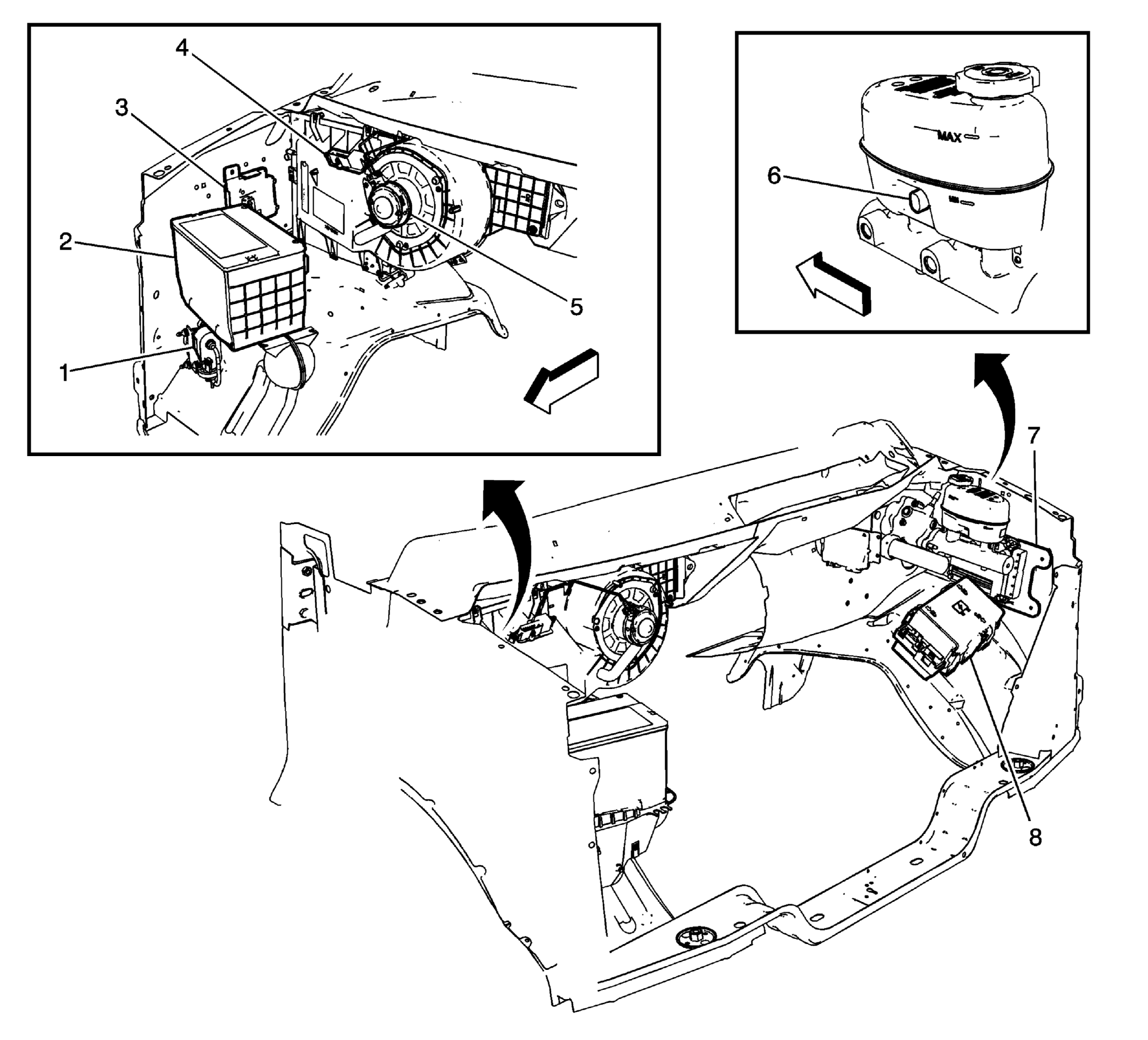

Fig 1: Engine Compartment
GM1973017Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Vacuum Pump (LMM or LGH)
2 Battery
3 Transmission Control Module (TCM)
4 Blower Motor Resistor
5 Blower Motor
6 Brake Fluid Level Switch (Heavy Duty)
7 Engine Control Module (ECM)
8 Fuse Block- Underhood
