Audio Disc Player and USB Receptacle Replacement

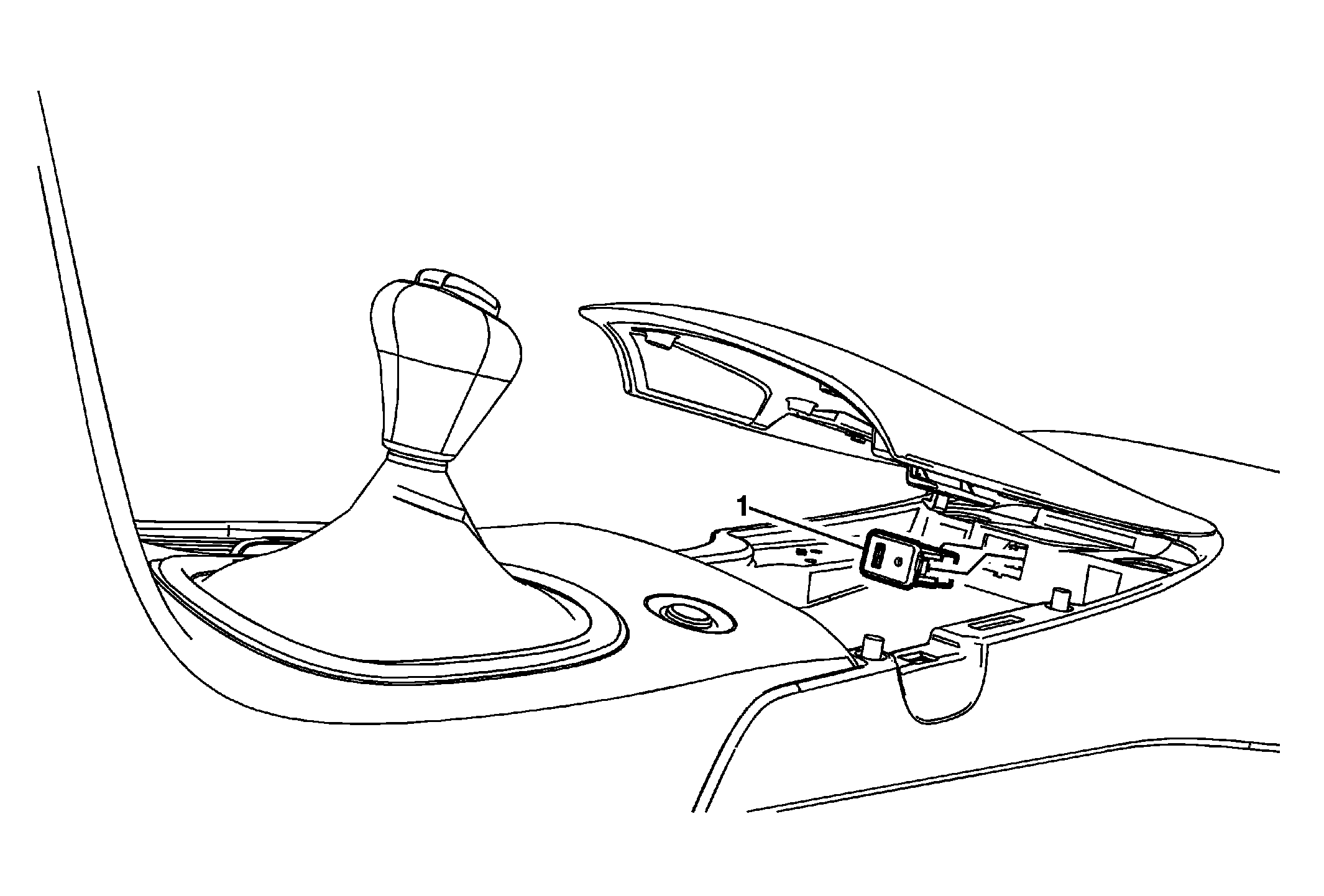

Fig 1: Audio Disc Player and USB Receptacle
GM2488897Courtesy of GENERAL MOTORS COMPANY
Audio Disc Player and USB Receptacle Replacement

Callout Component Name
1 Audio Disc Player and USB Receptacle

Procedure

  1. Open arm rest and using a small flat bladed tool, release the receptacle.
  2. Disconnect the electrical connector.
