Mobile Telephone Microphone Replacement

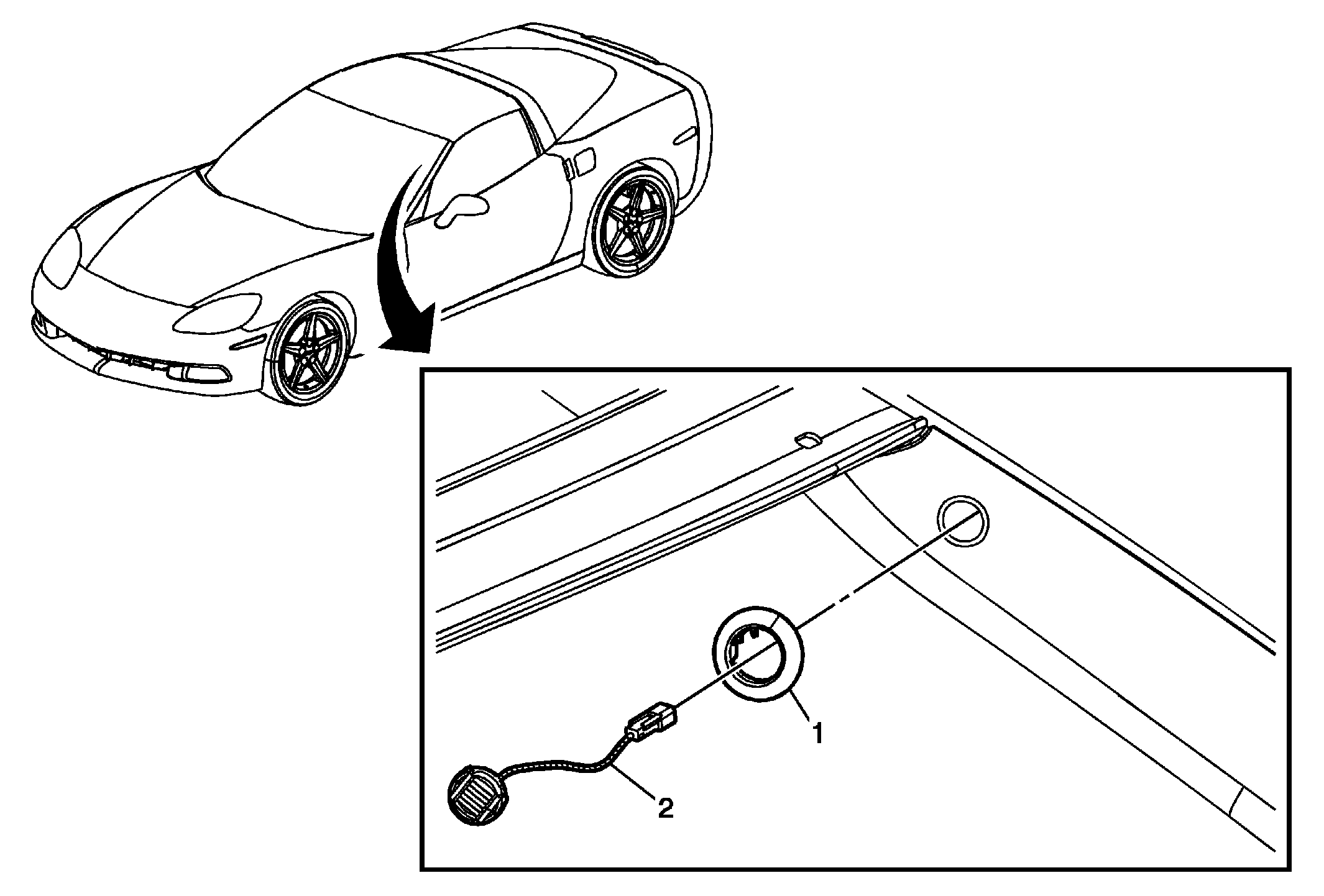

Fig 1: View Of Mobile Telephone Microphone

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the driver side windshield garnish molding. Refer to Windshield Side Garnish Molding Replacement .
1	Mobile Telephone Microphone Bezel Procedure Use flat blade tool to pry bezel from molding.
2	Mobile Telephone Microphone Assembly Procedure Unsnap microphone from bezel.
