Removal Procedure

  1. Turn the ignition to the OFF position.
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
    3. Fig 1: Identifying BPMV Nuts
    GM2141655Courtesy of GENERAL MOTORS COMPANY
  3. Remove the brake pressure modulator valve (BPMV) nuts (1).
    4. Fig 2: Identifying EBCM/BPMV Module Assembly
    GM2141659Courtesy of GENERAL MOTORS COMPANY
  4. Lift the BPMV assembly (1) upward to disengage the BPMV insulators from the brake pressure modulator valve bracket.

    Support the BPMV assembly with heavy mechanics wire or equivalent.

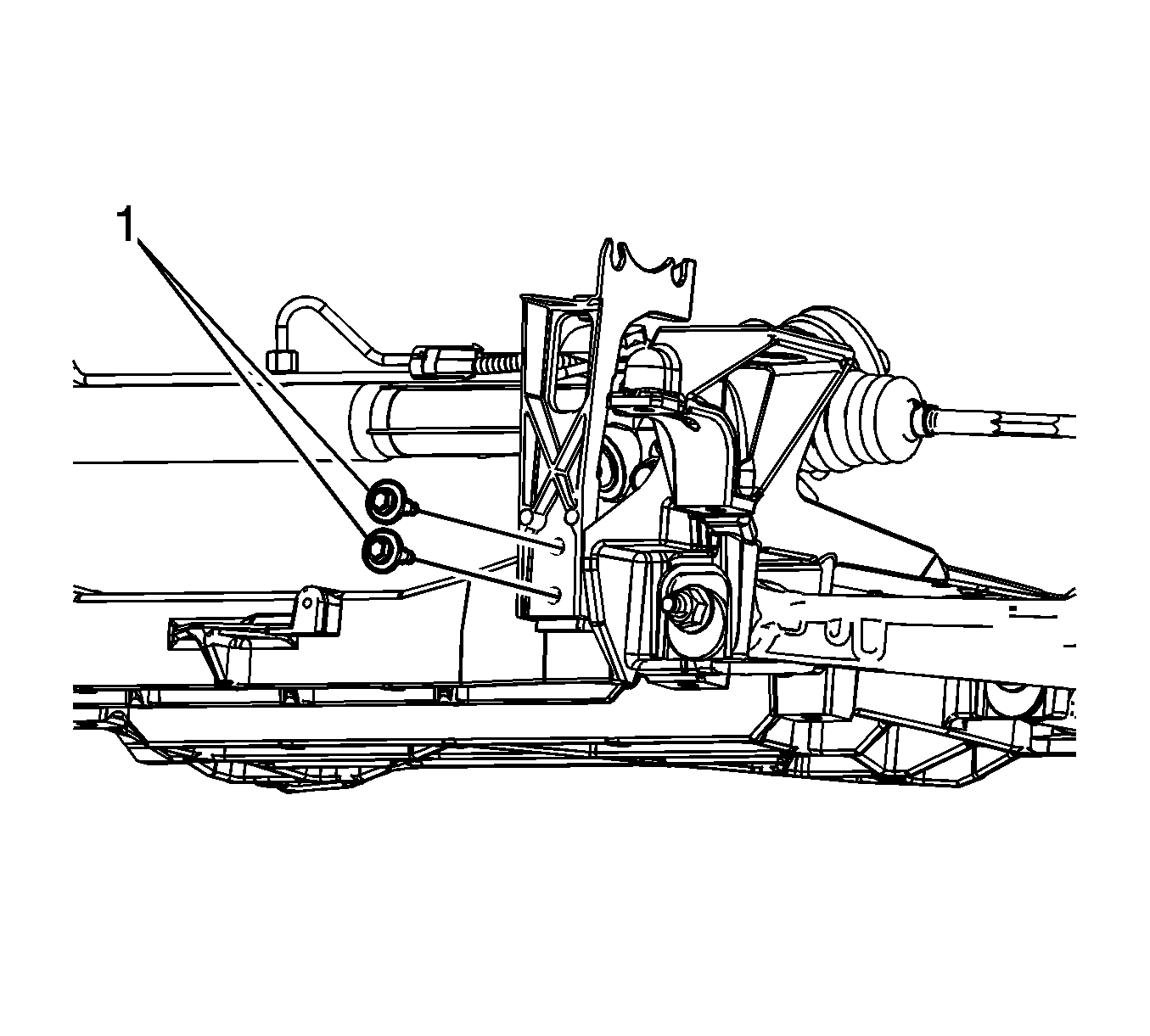

    5. Fig 3: Identifying BPMV Bracket Bolts
    GM2141662Courtesy of GENERAL MOTORS COMPANY
  5. Remove the BPMV bracket bolts (1).

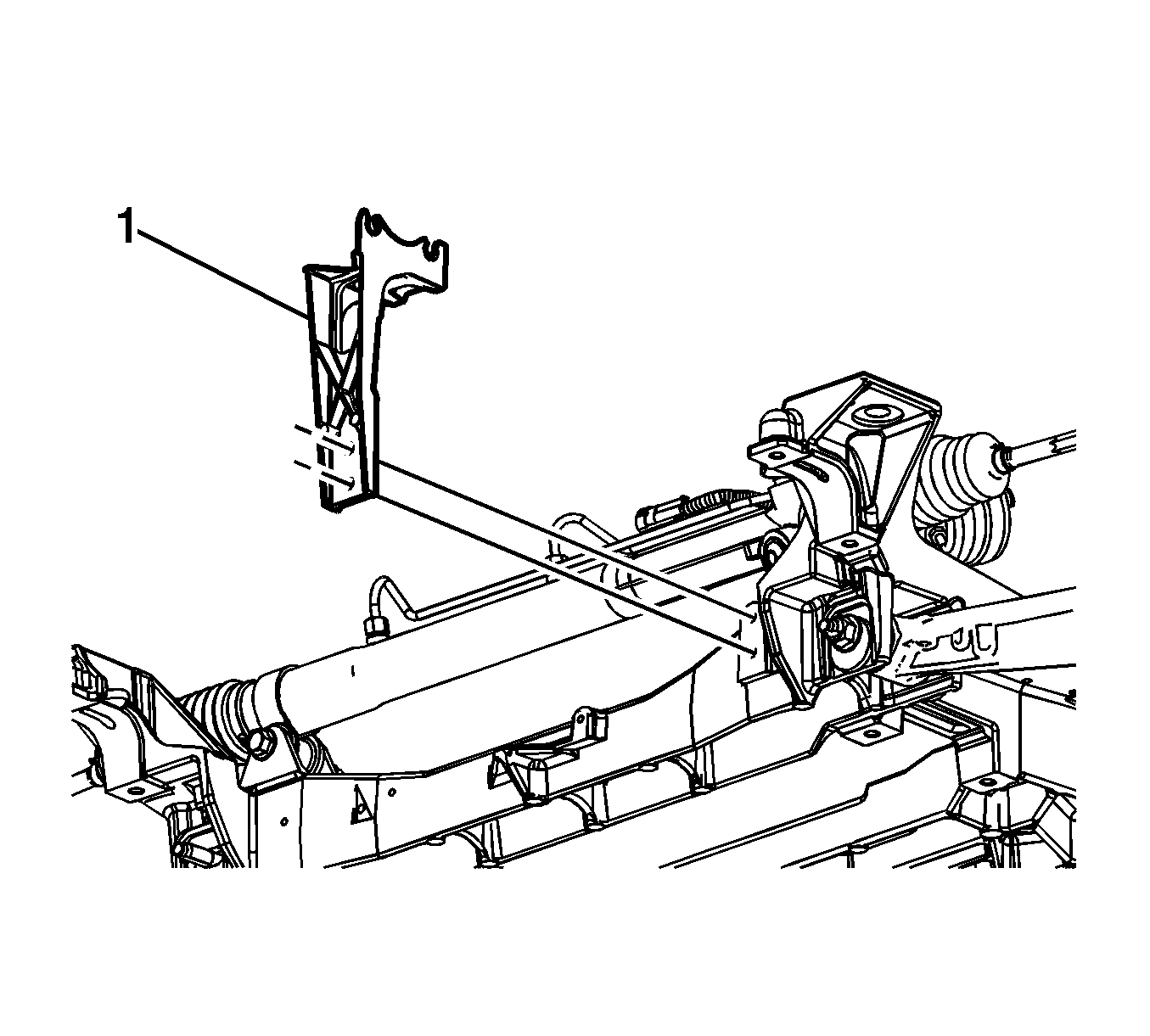

    6. Fig 4: Identifying BPMV Bracket
    GM2141666Courtesy of GENERAL MOTORS COMPANY
  6. Remove the BPMV bracket (1).
