Installation Procedure

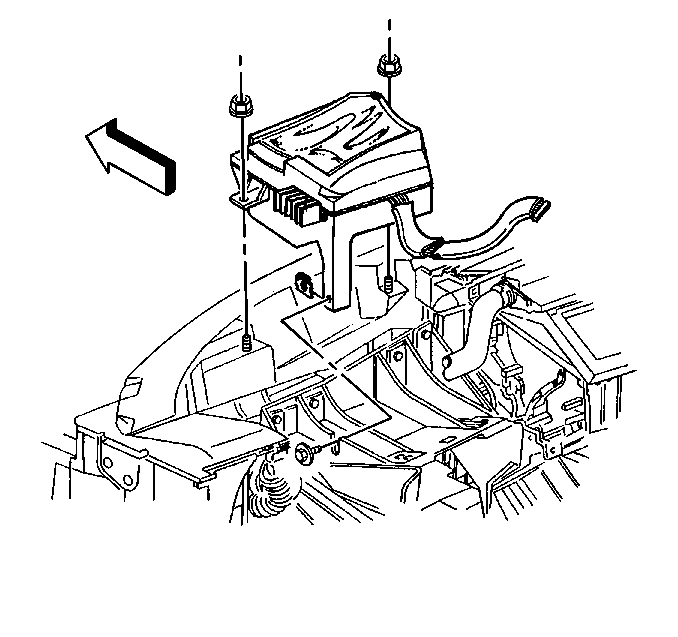

    Fig 1: Installing HUD Assembly
    GM378935Courtesy of GENERAL MOTORS COMPANY
  1. Transfer the retaining screw and nut to the replacement HUD.
  2. Install the HUD to the vehicle:
    1. Install the HUD onto the dash panel mounting studs.
    2. Slide the HUD retaining screw into the slot on the steering column bracket.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the HUD retaining nuts.

    Tighten

    Tighten the nuts to 5 N.m (44 lb in).

  4. Tighten the screw that retains the HUD to the steering column bracket.

    Tighten

    Tighten the screw to 3 N.m (27 lb in).

  5. Install the I/P assembly. Refer to Instrument Panel Assembly Replacement .
  6. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (LS7 or LS9) , Battery Negative Cable Disconnection and Connection (LS3) .
  7. Refer to Control Module References for programming and setup information.
