Installation Procedure

  1. Install the steering column electric lock to the steering column.

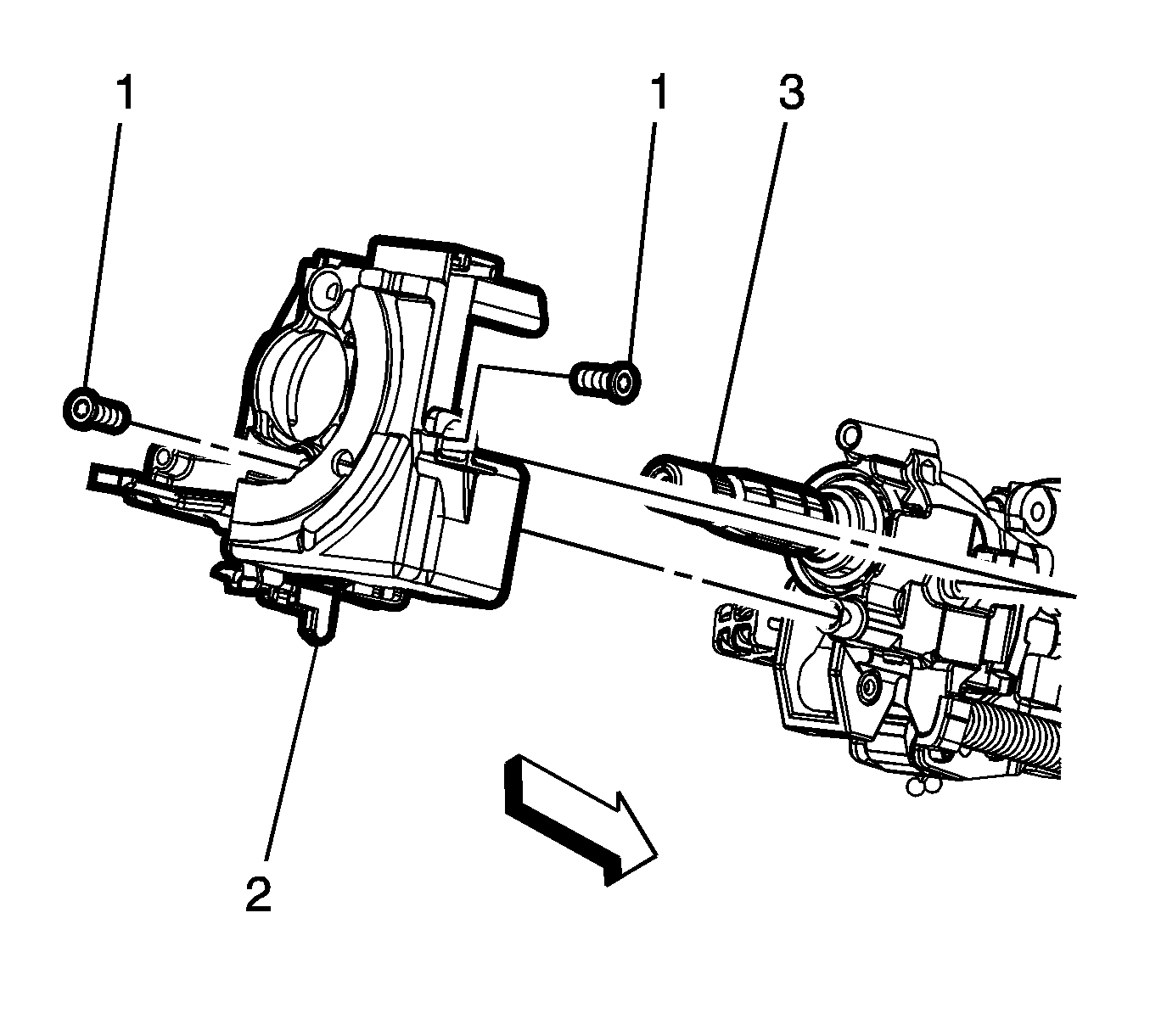

    2. Fig 1: Steering Column Lock
    GM2718903Courtesy of GENERAL MOTORS COMPANY
  2. Install the two screws (1) securing the steering column lock (2) to the steering column.

    Tighten

    Tighten the screws to 11 N.m (97 lb in).

  3. Install the windshield wiper and windshield washer switch to the steering column. Refer to Windshield Wiper and Washer Switch Replacement .
  4. Install the turn signal and headlamp dimmer switch assembly to the steering column electric lock. Refer to Turn Signal Multifunction Switch Replacement .
  5. Install the steering shaft upper bearing spring. Refer to Turn Signal Cancel Cam and Steering Shaft Upper Bearing Spring Replacement (Manual) , Turn Signal Cancel Cam and Steering Shaft Upper Bearing Spring Replacement (Telescoping) .
