Fuel System Module




Wheels/Vehicle Underbody Component Views

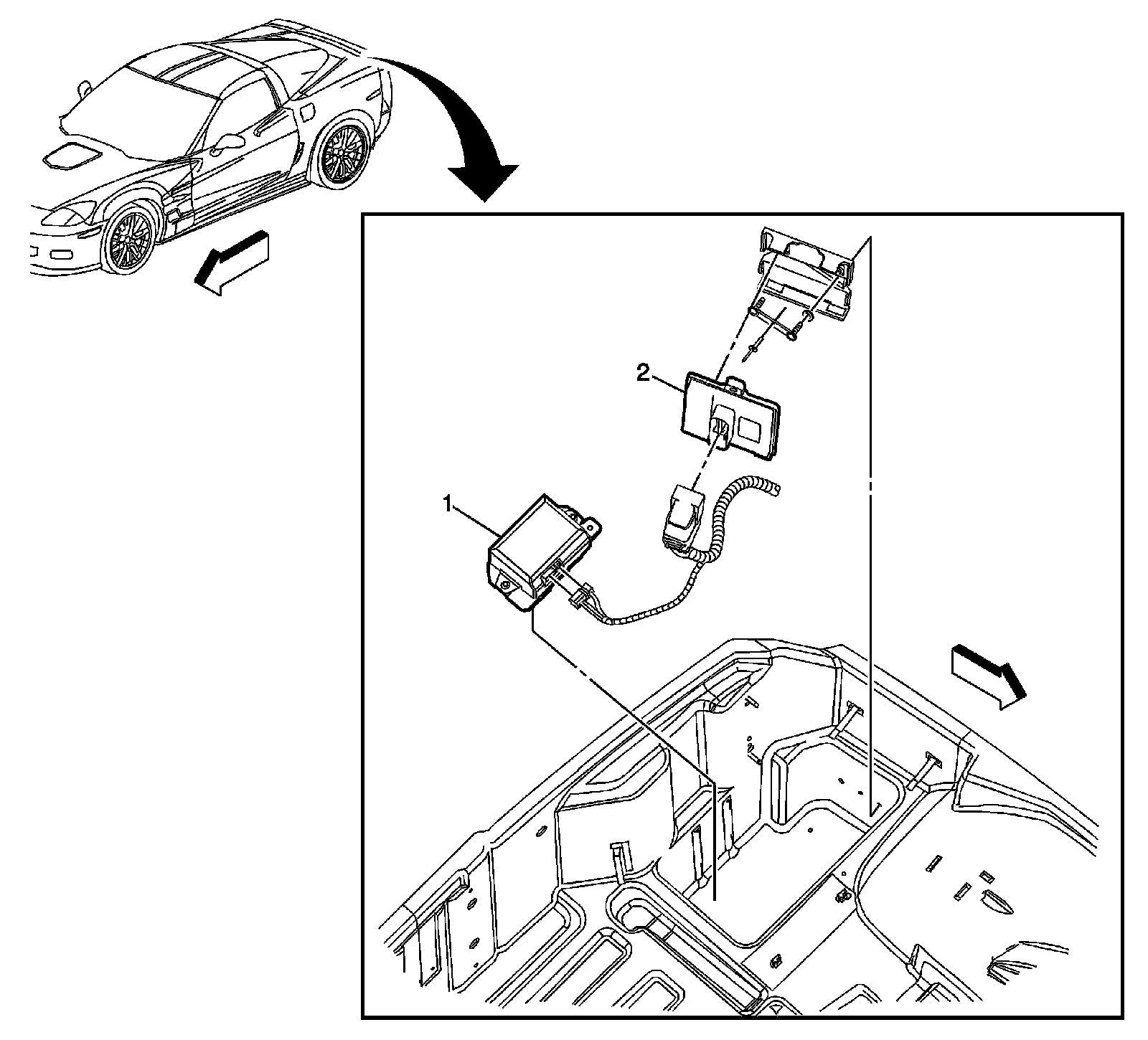

Fuel System Module (LS9)





1 - Fuel System Control Module Relay

2 - Fuel System Control Module
