Engine Harness Routing




Harness Routing Views

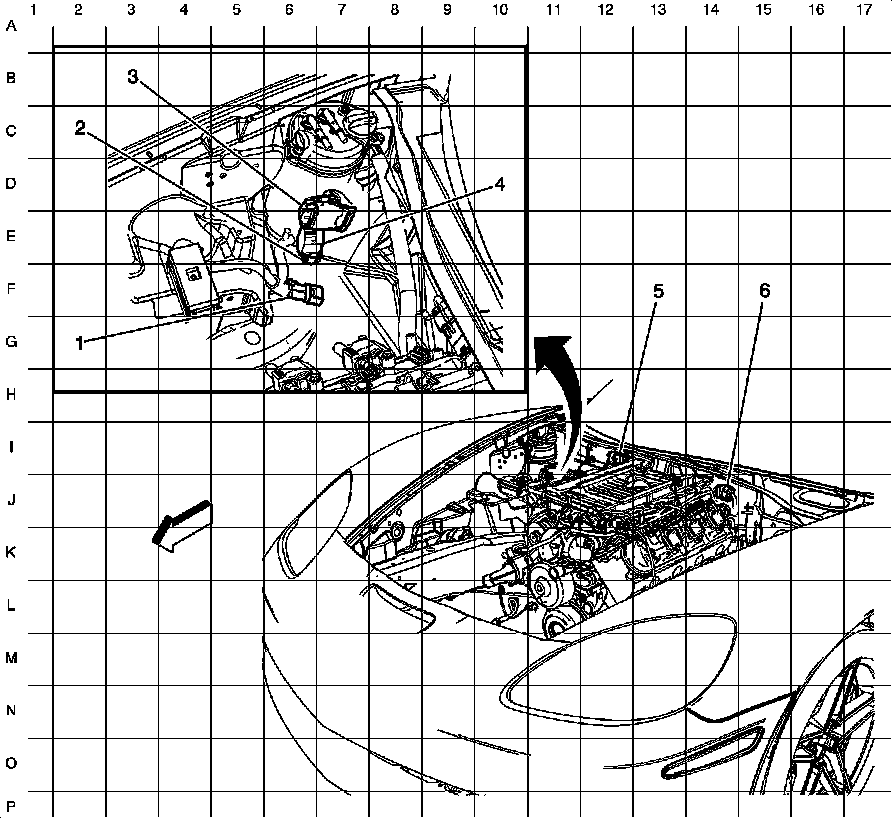

Engine Harness Routing (LS9)





1 - X182

2 - X186

3 - X180

4 - X184

5 - X161

6 - X160
