G202

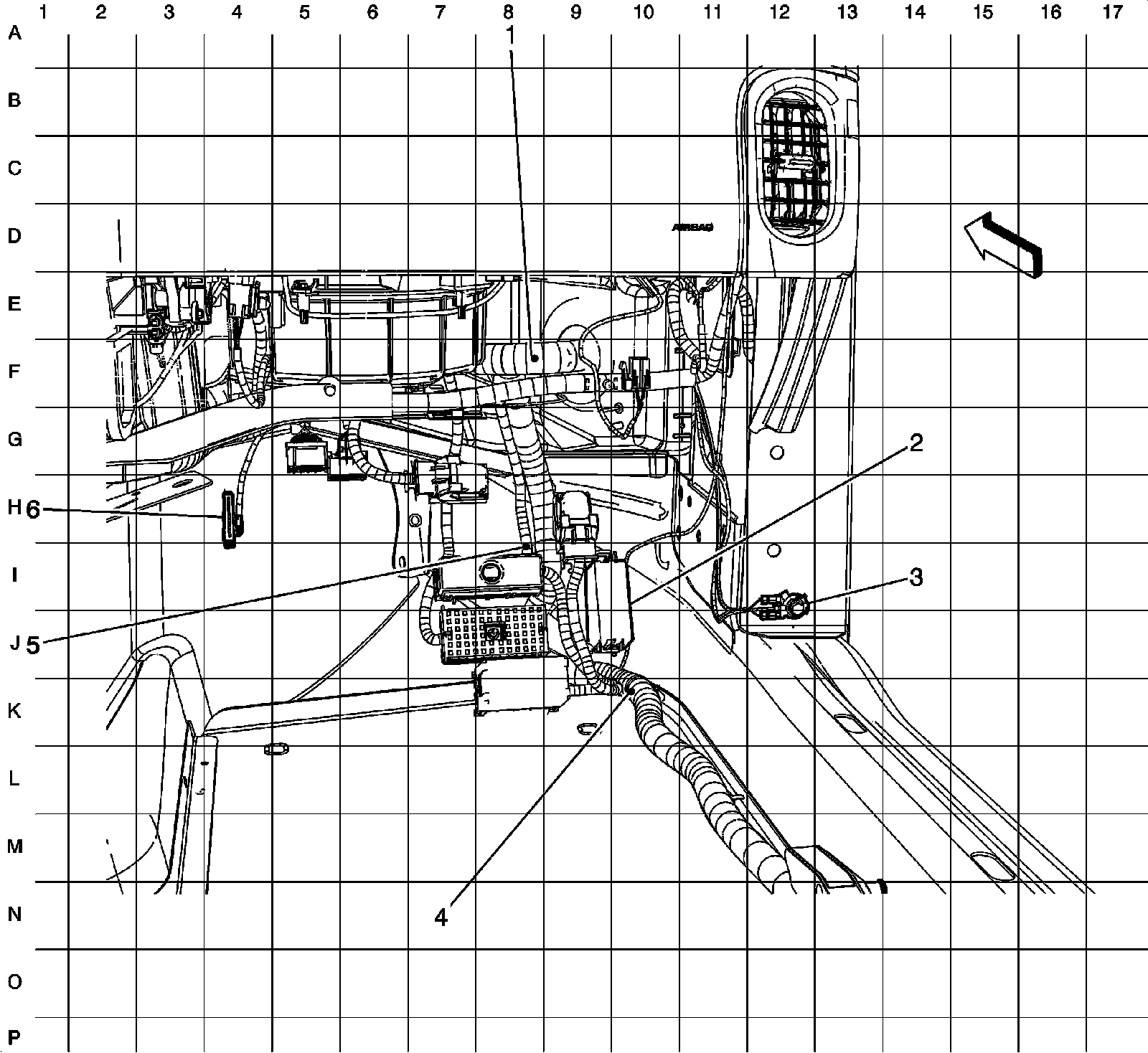

Ground Views

G202





1 - J217 (LS3)

2 - Relay Block- I/P

3 - G202

4 - J234

5 - J202

6 - JX208
