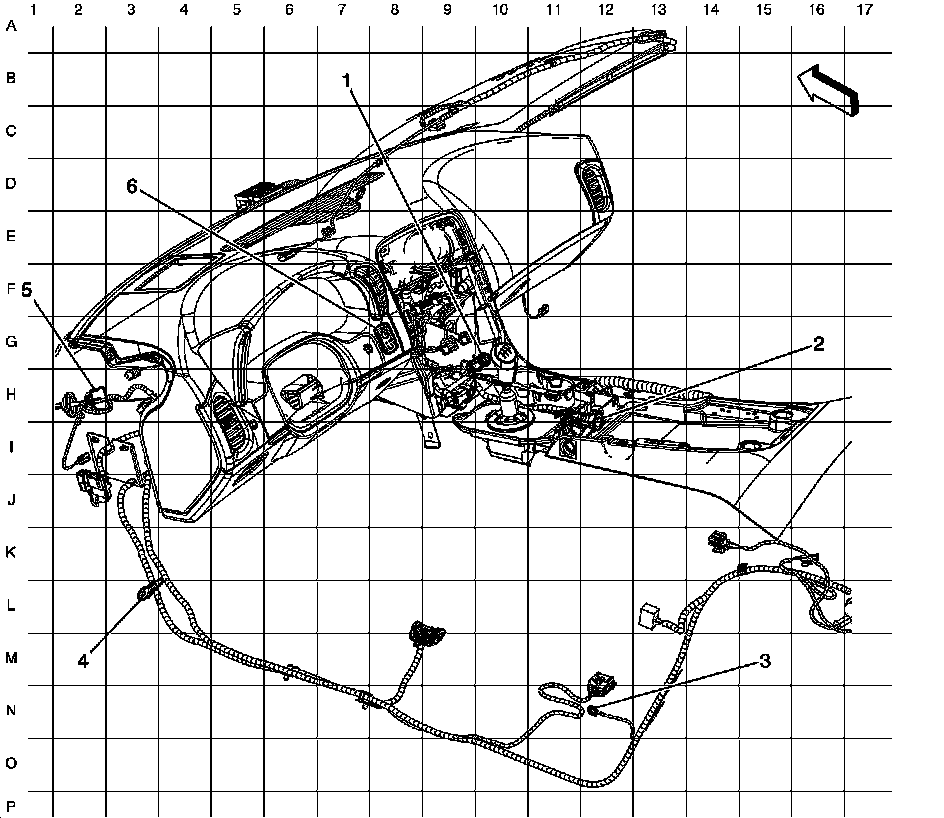

Ignition Mode Switch (IMS)




Ground Views

G201





1 - Cigar Lighter

2 - Accessory Power Outlet

3 - G301

4 - G201

5 - JX205

6 - Ignition Mode Switch (IMS)
