Engine Harness Routing- Lower Front




Harness Routing Views

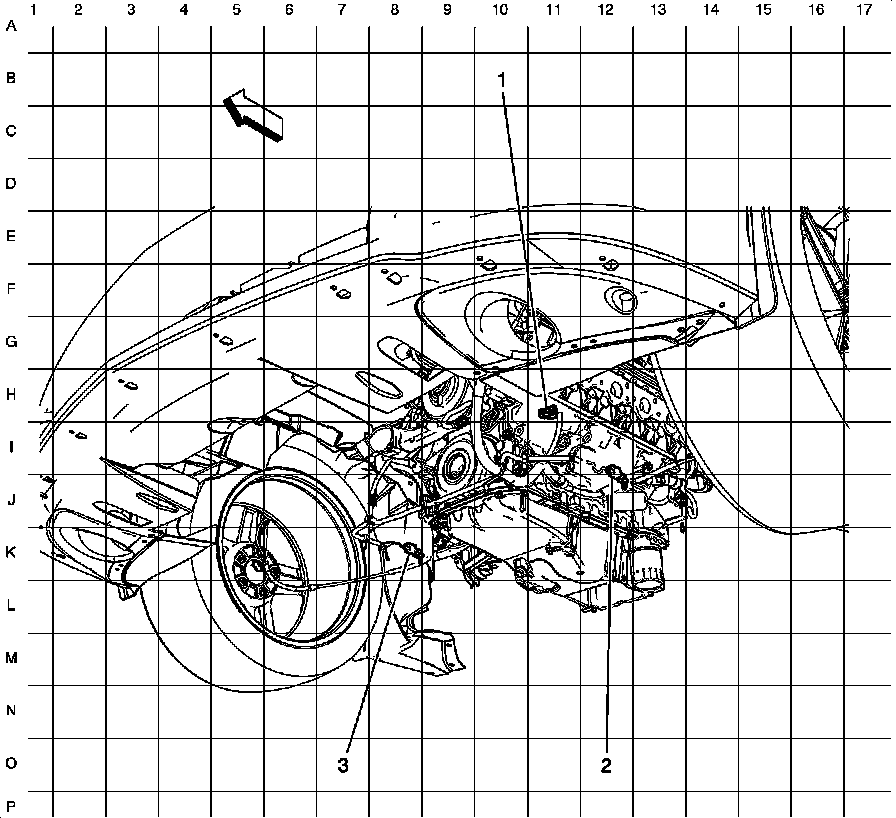

Engine Harness Routing- Lower Front (LS7)





1 - Knock Sensor (KS) 1

2 - X159

3 - X163
