Side Impact Sensor - Right Rear

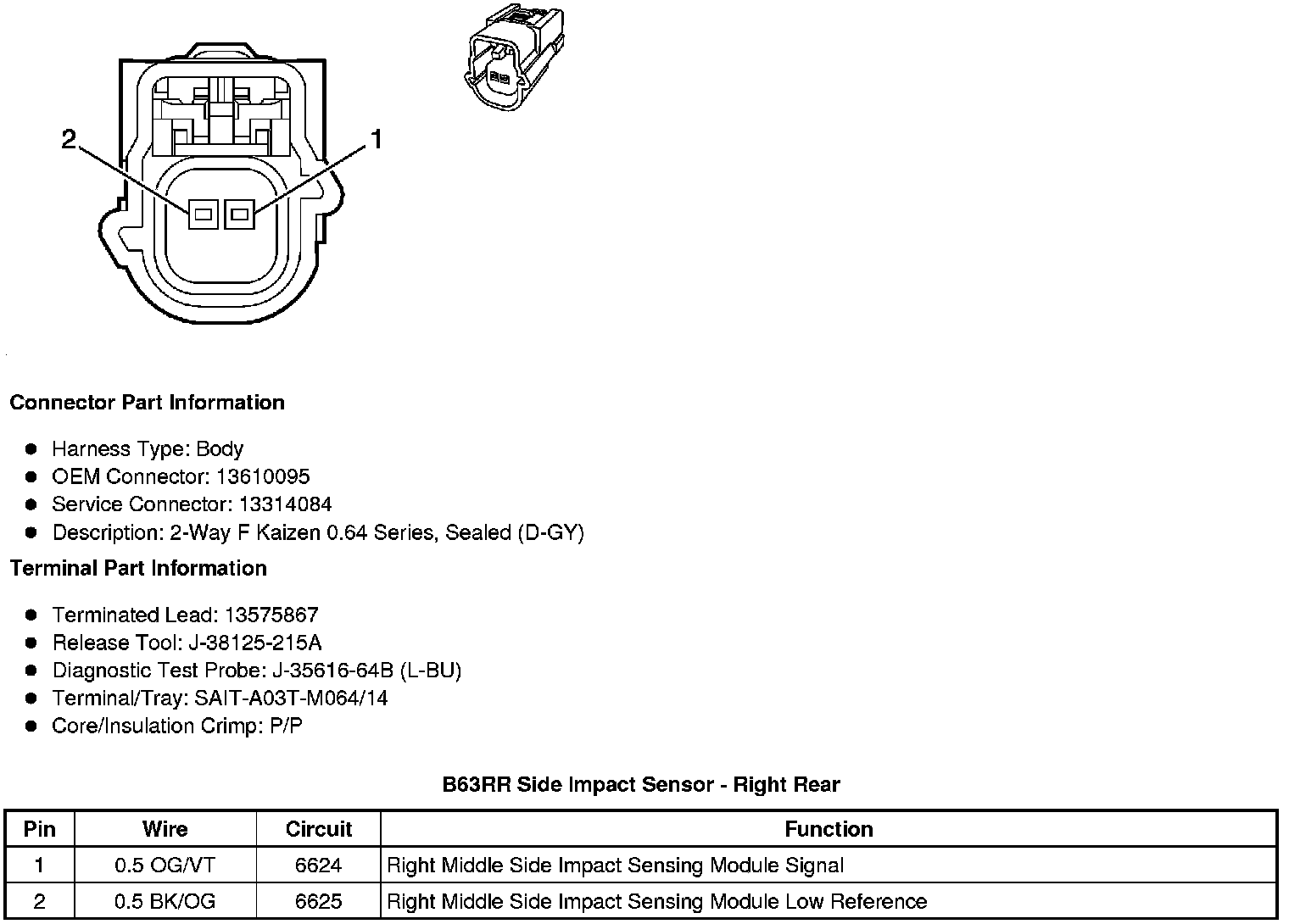

Component Connector End Views

B63RR Side Impact Sensor - Right Rear
