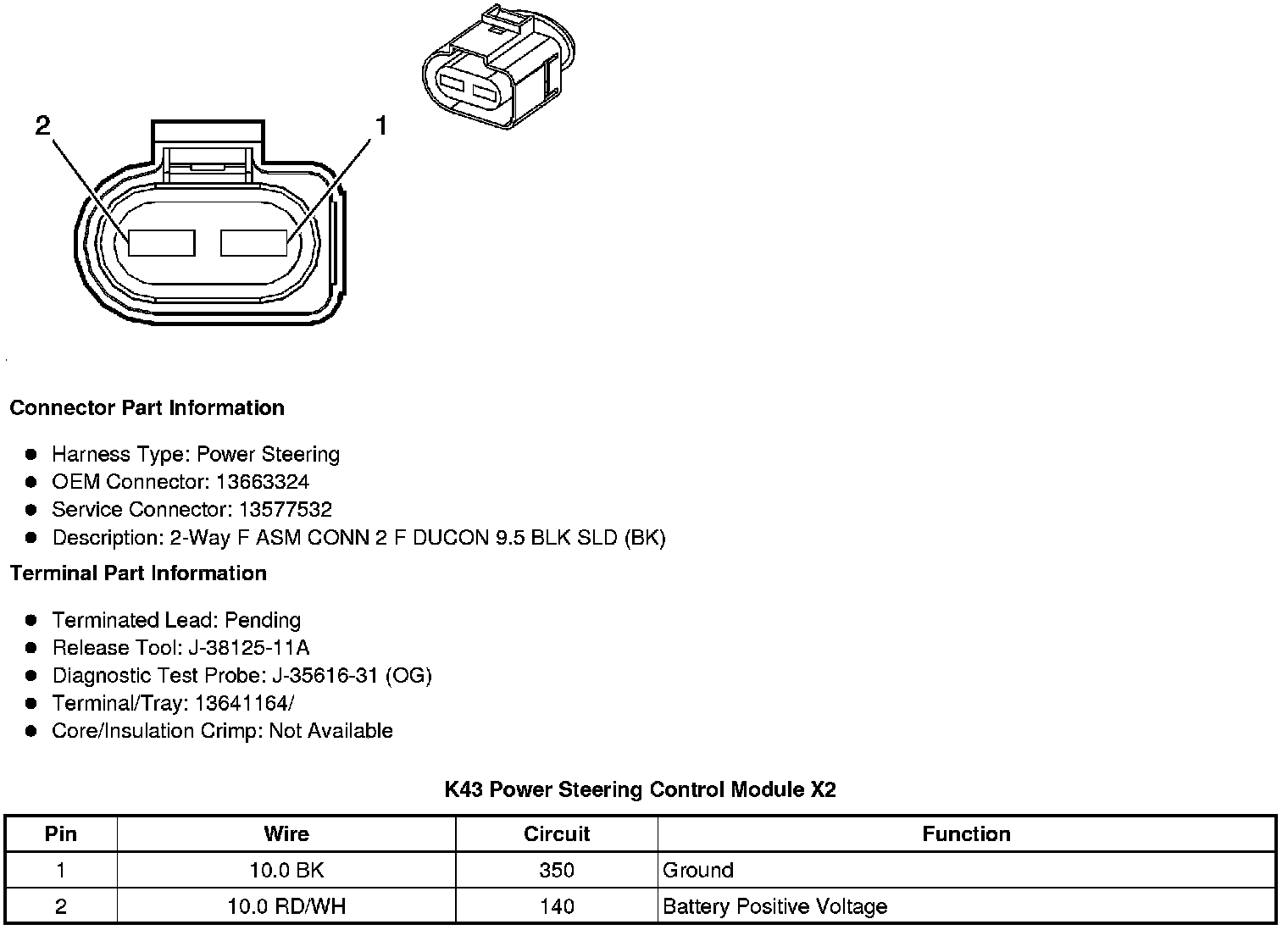

Power Steering Control Module X2




Component Connector End Views

K43 Power Steering Control Module X2
