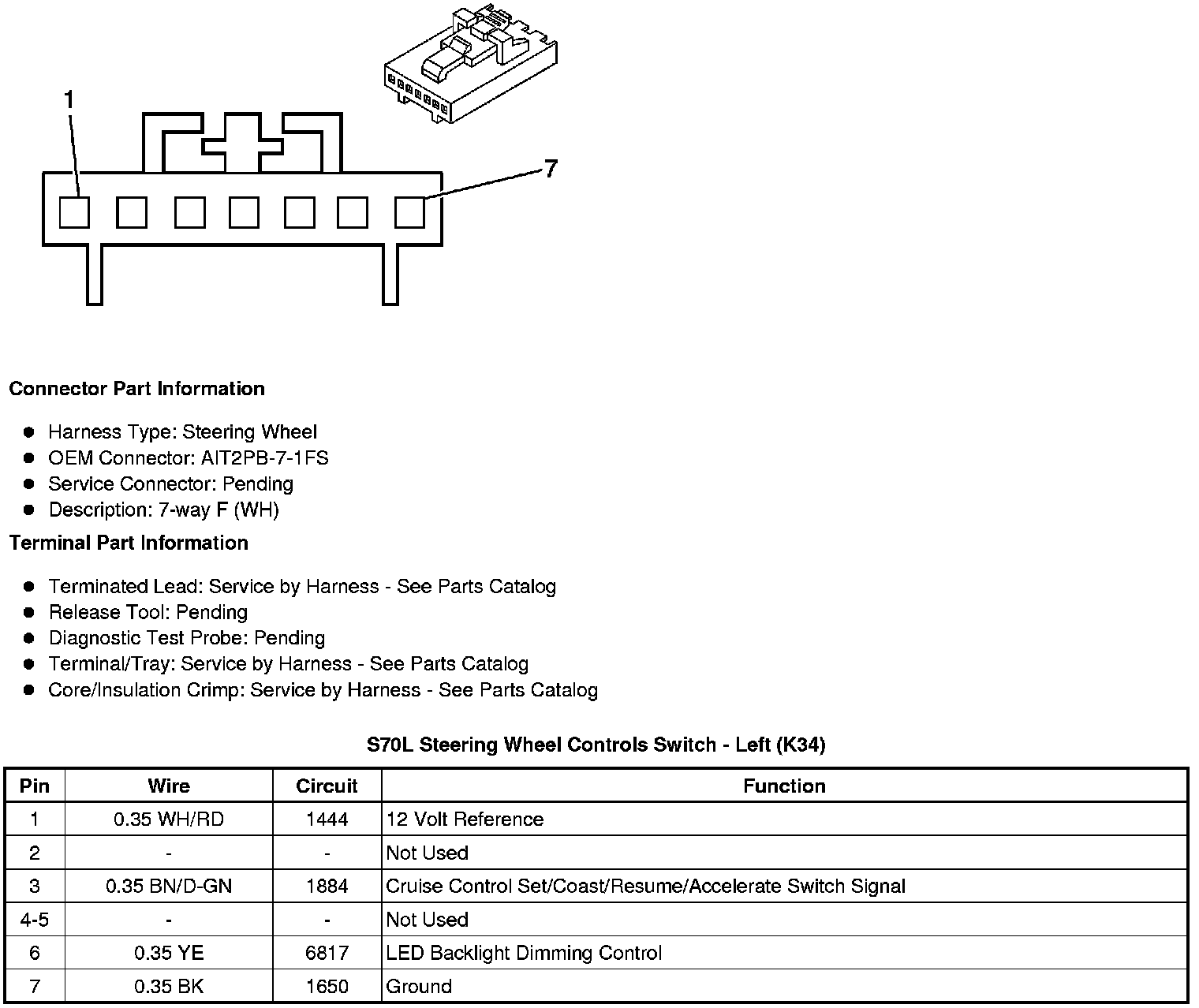

Steering Wheel Controls Switch - Left (K34)




Component Connector End Views

S70L Steering Wheel Controls Switch - Left (K34)
