Crankshaft Position Sensor: Diagrams

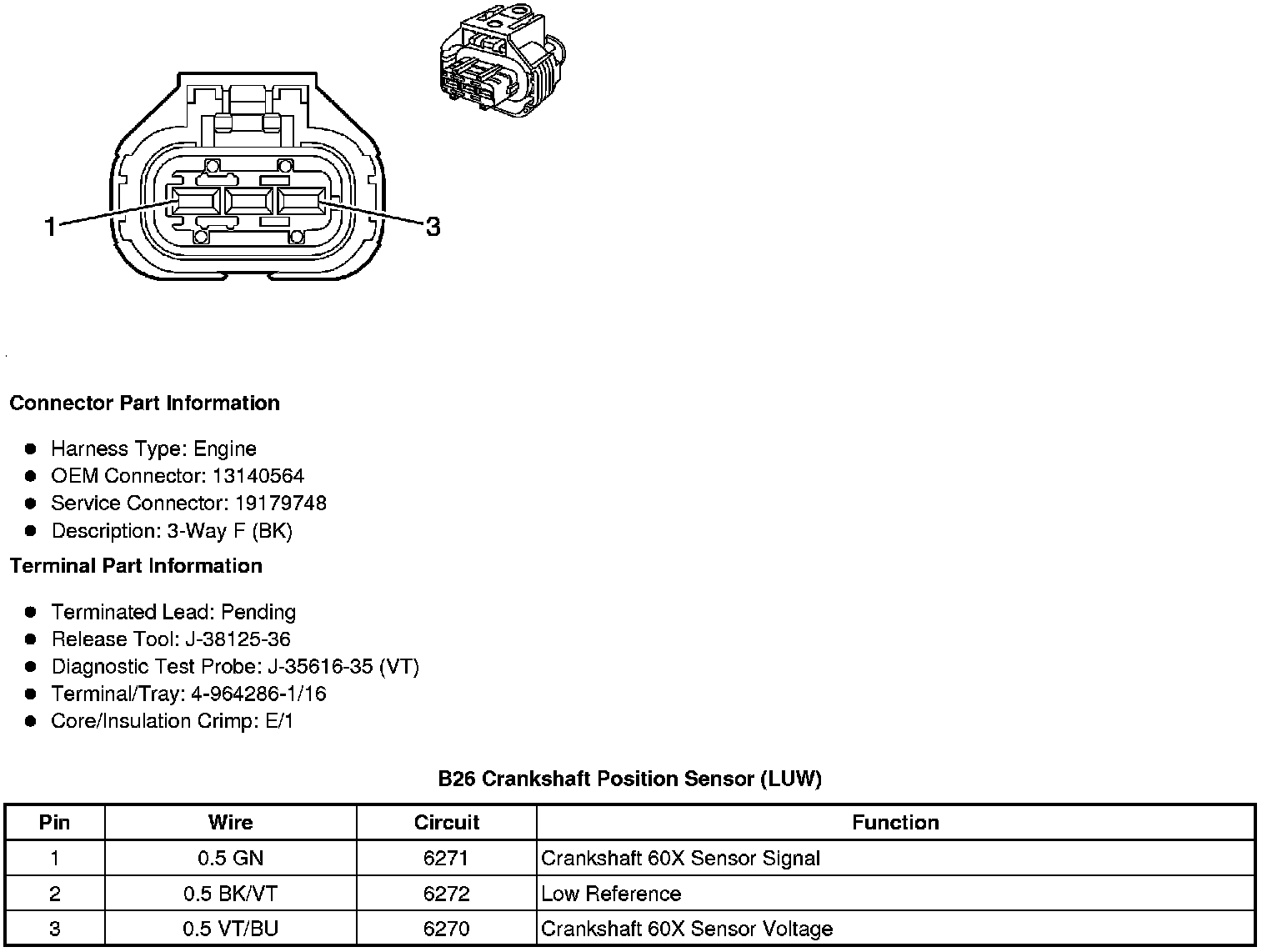

Component Connector End Views

B26 Crankshaft Position Sensor (LUW)
