Door Lock Switch Replacement

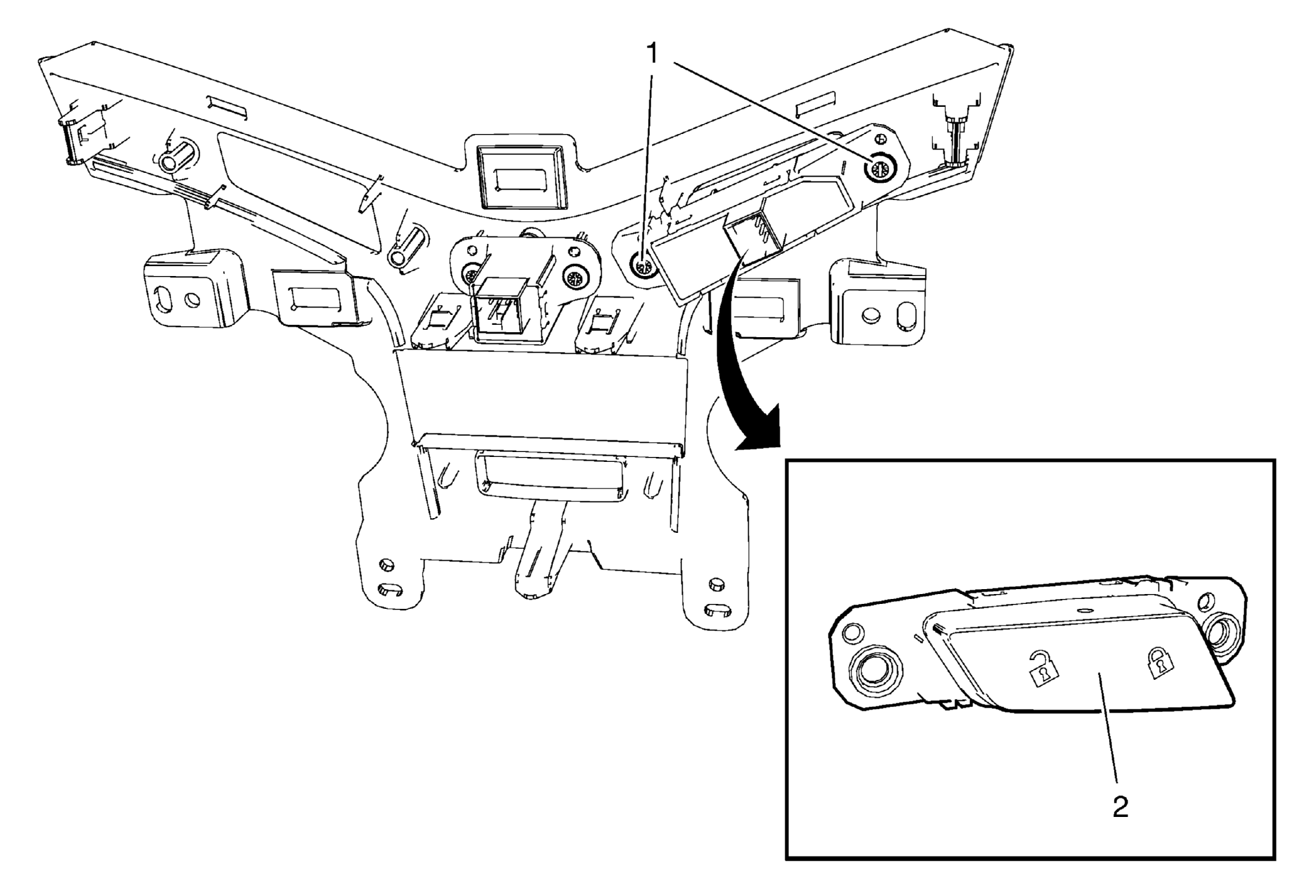

Fig 1: Door Lock Switch And Screws
GM2027207Courtesy of GENERAL MOTORS COMPANY
Door Lock Switch Replacement

Callout Component Name
Preliminary Procedures
Remove instrument panel accessory bezel. Refer to Instrument Panel Accessory Bezel Replacement .
1 Door Lock Switch Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
1.5 N.m (13 lb in)
2 Door Lock Switch
Procedure
Disconnect electrical connector.
