Front Compartment Fuse Block Housing Replacement

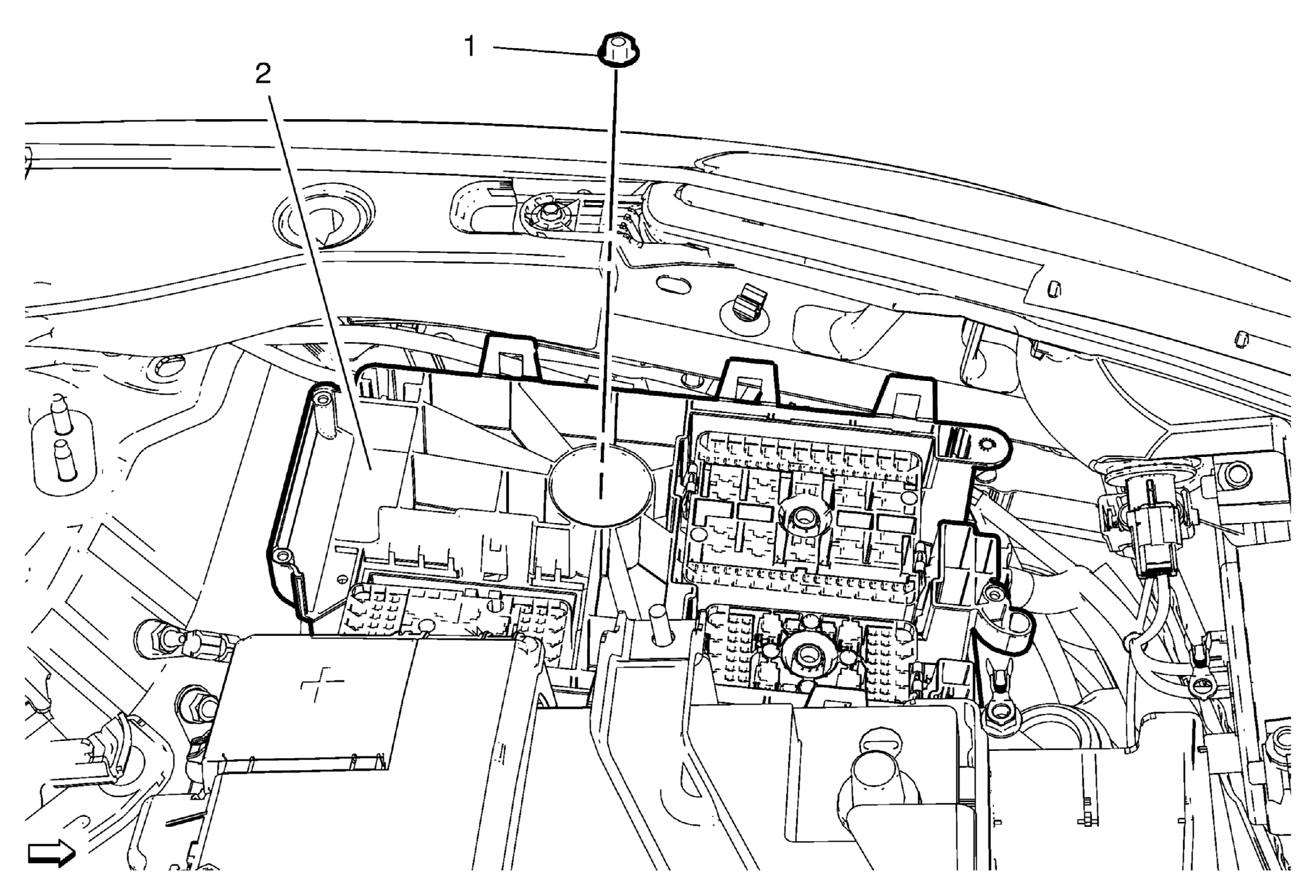

Fig 1: Front Compartment Fuse Block Housing And Nut
GM2371794Courtesy of GENERAL MOTORS COMPANY
Front Compartment Fuse Block Housing Replacement

Callout Component Name

Preliminary Procedures

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove the windshield washer solvent container filler tube. Refer to Windshield Washer Solvent Container Filler Tube Replacement .
  3. Remove front compartment fuse block. Refer to Front Compartment Fuse Block Replacement .
1 Front Compartment Fuse Block Housing Nut
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m(16 lb ft)
2 Front Compartment Fuse Block Housing

Procedure

  1. Remove 3 electrical connectors from front compartment fuse block housing.
  2. Remove attaching parts and unclip wiring harnesses from front compartment fuse block housing.
