Inside Rearview Mirror Replacement

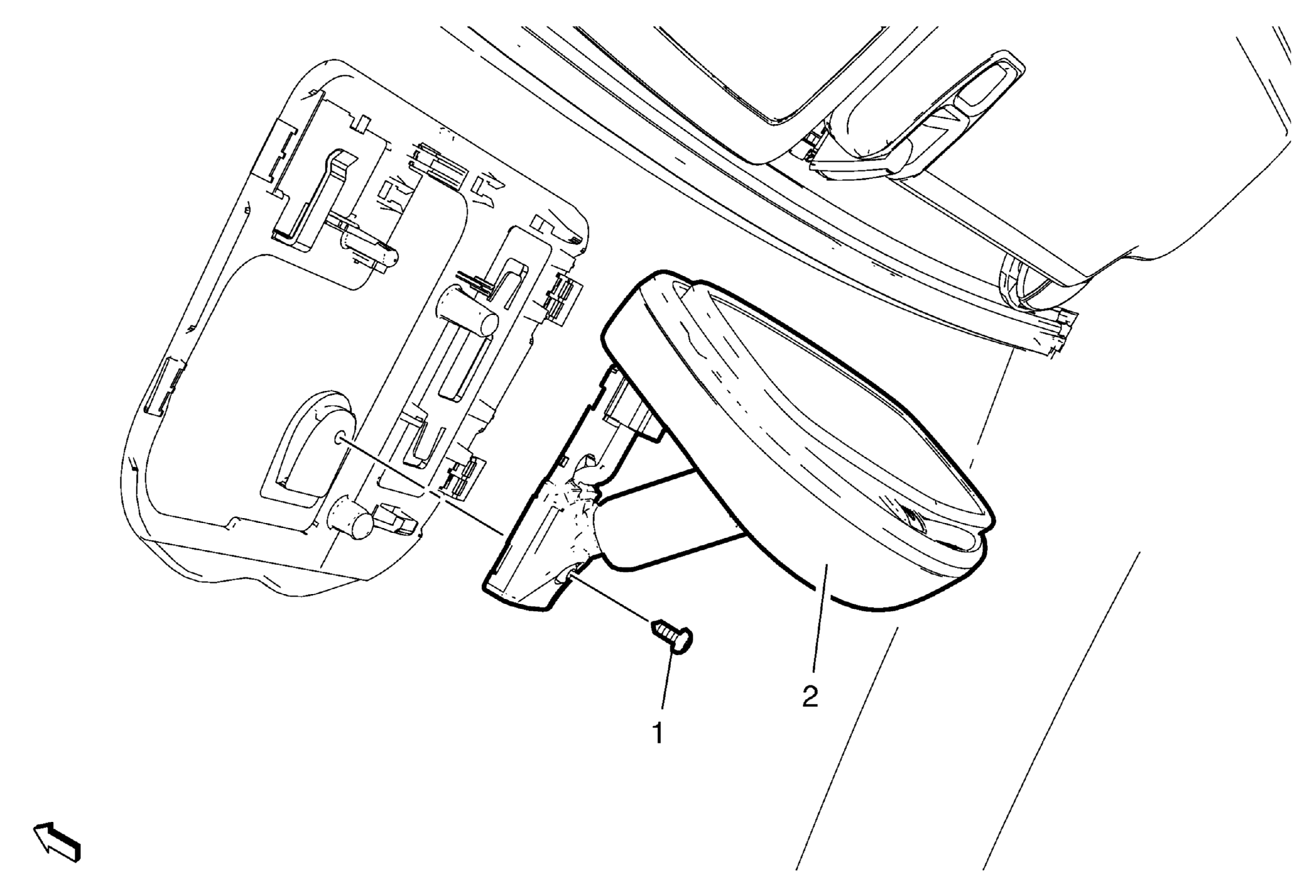

Fig 1: Inside Rearview Mirror

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the inside rearview mirror mount plate cover. Refer to Inside Rearview Mirror Mount Plate Cover Replacement .
1	Inside Rearview Mirror Bolt CAUTION: Refer to Fastener Caution .
2	Inside Rearview Mirror Procedure Disconnect the electrical connector. Slide the mirror in an upward motion in order to remove.

Callout

Component Name

Preliminary Procedure
Remove the inside rearview mirror mount plate cover. Refer to Inside Rearview Mirror Mount Plate Cover Replacement .

Inside Rearview Mirror Bolt

CAUTION:

Inside Rearview Mirror

Procedure
